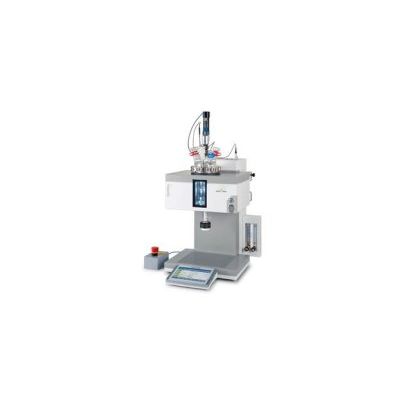

OptiMax - Synthesis Workstation

OptiMax replaces traditionally used round bottom flasks and jacketed vessels by a versatile and easy-to-use system. Set up in minutes, OptiMax operates accurately and reproducibly, and can be run unattended safely providing information-rich and traceable data.

Specifications - OptiMax Synthesis Workstation

Temperature Range: -40.0 °C - 180.0 °C
Operating Volume: 50.0 milliliters - 1000.0 milliliters
Material: Powder-coated stainless steel with FEP coated cover plate
Dimensions Width: 38.8 cm
Dimensions Depth: 41.4 cm
Dimensions Height: 78.0 cm
Power Supply: 100 … 240 VAC, 50/60Hz
Weight: 35.0 kg
Heating / Cooling: Solid State Thermostat
Material Number(s): 51162701

Synthesize, Optimize, Characterize and Processes Right In Time

Heating and Cooling – Simple and Accurately
The electrical heating and the Peltier coooling ensure precise temperature control from -40°C to 180 °C. It does not require any cumbersome oil or ice baths or bulky cryostats.

One-Touch Control
Experiments are controlled by an intuitive touchscreen. Changing reaction parameters is simple and a matter of seconds. Data and trends are displayed on the screen instantaneously. A sequence of consecutive tasks can be programmed and run unattendend and safely.

Unlimited Flexibility
Depending on the nature of the study the experimental configuration can be chosen from a wide range of different reactors and accessories. Changing the configuration is fast and completely effortless.

Quality Information
All events and data are recorded automatically, making experiments traceable and reproducible. For processing or interpretation purposes, the data can be easily exported to iControl or Excel®.
