System-cMobile Single-use Bioprocessing Bag Holders with Integrated Scales

SHARE

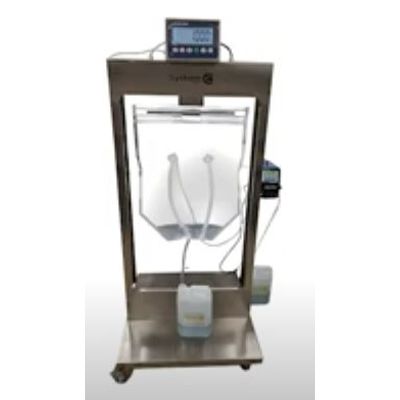

The System-c bioprocess WeighStation provides a solution for the handling of bioprocessing bags, focusing on precise gravimetric fluid management. This mobile single-use bag holder is engineered to incorporate integrated scales, enabling efficient fluid handling operations. The WeighStation's versatility allows it to function independently or be seamlessly integrated with PARKER's advanced smart pumps, such as PureTec®, FilterTec®, and ChemTec®. This adaptability is further enhanced by customizable features, where users can include elements like filter supports, pump trays, and tubing supports. The system is designed to operate under rigorous conditions, ranging from temperatures of 4 to 40 ºC with 100% humidity. To accommodate different power configurations, it supports either 110/120 VAC or 208/240 VAC, 50-60 Hz. Capable of handling weights up to 250 lb (114 kg), the WeighStation stands as a robust solution for bioprocessing needs.

Most popular related searches

Multipurpose
Functional as a standalone device or integrated into smart PARKER pumps.

Customizable
Several elements can be added to the platform: filter support, pump tray, tubing support, etc…

Applications
  • DSP & USP
  • Normal flow filtration (NFF)
  • Tangential flow filtration (TFF) : retentate or permeate quantification
  • Buffer storage & preparation
  • Dispensing
  • Metering
Easy to use
  • Hang the bioprocess container from the scale
  • Connect the communication cable and the plumbing
Compatibilities

Smart PARKER pumps : PureTec®, FilterTec®, FilterTec Plus®, ChemTec®, LabTec®

Dimensions
  • Overall: length 29in (74 cm); width: 29 in (74 cm); height: 66 in (175 cm)
  • Platform height: 7 in (18 cm) including 3.5 in OD locking casters
  • Max interior width: 25 in (63 cm)
  • Bag holder from base: 45 in (114 cm)
Weight

250 lb (114 kg)

Power

110/120 VAC or 208/240 VAC, 50-60 Hz as wired

Operating range

4 – 40 ºC, 100 % humidity

System component specifications
  • Terminal: Mettler Toledo IND331 Harsh Terminal with LED display, IP66
  • Capacity & Resolution: 50 kg x 0,010 kg
  • Typical max media bag size: 35 kg
  • Other models available on request
Communication
  • Analogig 4-20 mA with tare
  • Profibus
  • RS-535 with DB9 connector
