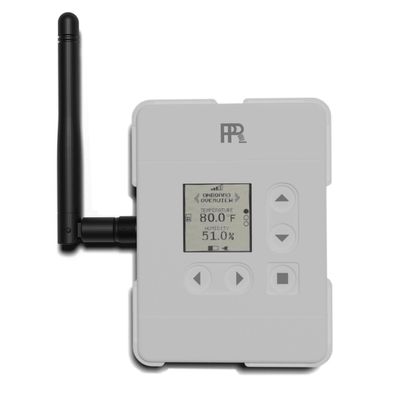

Paragon Robotics - System Gateway with External Antenna for Wireless Communications with DB33 RTD temperature module

N series gateways utilize a secure RF wireless protocol to communicate with remote sensor and control devices throughout a building, campus or mulitple locations. System gateways are accessed through a wired Ethernet network connection and are cloud accessible with Internet enabled network connections. Multiple gateways can be integrated into a single system to expand range, coverage or handle multple building or location applications

One gateway is required for each site, and oversees each wireless network of sensor and control devices. It also relays communications between all wireless devices and a connected PC or local network. On-board storage is used to store decades of logged data from the connected sensors in its wireless network. The gateway can be optionally configured to work with our HaloCloud service, allowing remote monitoring, control, and alarms for the entire system.

Gateways include internal storage for sensor data collection and logging, Ethernet connection for access, expansion ports for DB sensor and control modules, battery backup and require USB power. An AC/DC power supply with USB connection is included with every gateway. Available options for extended wireless range (external antenna), increased data storage through SD expansion card slot, Power over Ethernet (PoE) and increased number of expansion ports for DB sensor and control modules.

The expansion module DB33 accepts input and provides signal conditioning for a single external RTD/ Pt100 temperature probes. Any 3-wire Pt100 (100 ohm) RTD probe is usable with the DB33, and is calibrated completely during the software setup. The easy access terminal blocks with screw down clamps provide secure connections for open wires from the temperature probes. The DB33 RTD module requires a single expansion port on the base device. Our DataRecorder and configuration utility software can be programmed to display the temperature measurement units and handle future probe calibrations. In addition, remote email or text(SMS) alarm notifications can also be enabled with our HaloCloud service.

The DB33 module and RTD temperature probes are primary used in product refrigeration and storage applications with vaccines, medical supplies, foods and temperature sensitive products. In addition, a broad range of process applications in the automotive, food handling and processing, medical/pharmaceutical, petrochemical and agricultural industries among others are suitable for RTD probes with their measurement accuracy advantage over standard thermistor probes.

What`s included

• This device
• Ac wall adapter

Features

• Create secure wireless sensor and control networks
• Single gateway range up to 200ft indoors, 1500ft line of sight
• Hundreds of sensors per a single gateway
• Data logging storage capability- 2 million samples and upgrade options up to 256 million data points
• Built in temperature and humidity sensors
• Expansion ports for additional sensors/ controls with our DB modules
• Local digital display for measurement readout, status, and programming
• Advanced wireless and data security with frequency hopping and AES-256 encryption
• High performance and extended range RF transceiver – 0.3 Mile line of sight capability
• Fast 10Mbps Ethernet port for connection to local network router, PC or server
• Full HTTP/DNS/DHCP server and client stack for integration into 3rd party software and dashboards
• Bacnet and Modbus integration
• Power over Ethernet (PoE) splitter option
• Ruggedized polycarbonate plastic enclosure with wall mounting hardware
• Compliant to RoHS directive 2002/95/EC

Applications

• Energy management, auditing, monitoring, analytics
• HVAC systems
• Energy efficiency and savings systems
• Buildings and facilities monitoring
• Refrigeration storage systems
• Life Sciences
• Hospitals - clean and ante rooms
• Environmental data acquisition and studies
• Product storage and warehouse
• Museums monitoring
• Medical /pharmaceutical
• Industrial process monitoring/ automation
