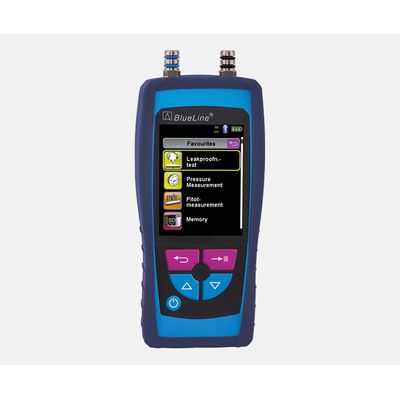

Systronik - Model S4600 ST Series - M066 -Media Pressure Analyzer

SHARE

The series S4600 ST pressure measuring instruments are ideal for measurements and adjustments under field conditions. Colour-coded, clearly structured menus ensure maximum ease of use of this high-quality manifolds. High measuring accuracy, user-friendliness and reliability are some of the outstanding features of this innovative product. Professional instrument for installation, maintenance and service of gas and water pipes. Specially designed to carry out reliable leak tightness checks, load tests and serviceability tests in accordance with existing rules and regulations.

Most popular related searches
pressure monitoring system
pressure monitoring
water piping
water pipe
leak tightness
pressure sensor
transmission data
tightness testing
leak tightness testing
piping design
  • Six (differential) pressure measuring ranges from measuring instrument for ultra-low pressure (20 mbar) to version for very high pressure (18 bar)
  • High quality pressure sensor with temperature compensation
  • Menu guided Tightness and Load test for gas and water pipes
  • Features Bluetooth® and QR code data transmission to the EuroSoft® connect App
  • Extendable with CAPBs® units and high-quality accessories for all types of service measuring tasks
The S4600 ST pressure meters use the latest data transmission technologies for easy documentation of the measured values (e.g. PDF reports). The measurement results are transferred reliably and fast to tablets, smartphones or PCs with Bluetooth® or QR code. The EuroSoft® connect App is the ideal tool when it comes to evaluating, storing and viewing the measurement results on your device. EuroSoft® connect is available for Android, iOS and Windows. In addition, the S4600 ST series instruments feature a microSD slot so that you can save your measurement results on microSD card as well.

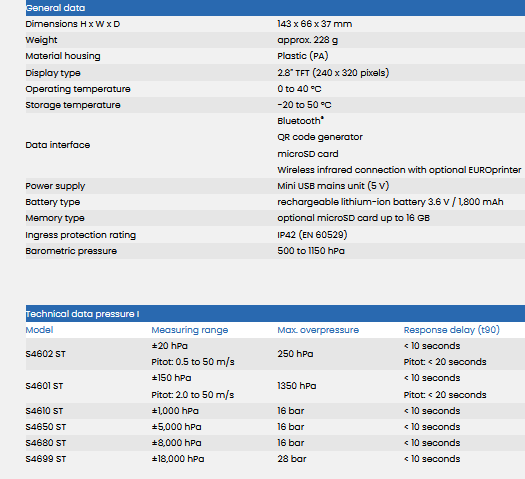

Pressure meter S4600 ST series
  • M066050116 S4602 ST up to 20 hPa
  • M066010116 S4601 ST up to 150 hPa
  • M066020116 S4610 ST up to 1,000 hPa
  • M066030116 S4650 ST up to 5,000 hPa
  • M066040116 S4680 ST up to 8,000 hPa
  • M066100116 S4699 ST up to 18 bar
