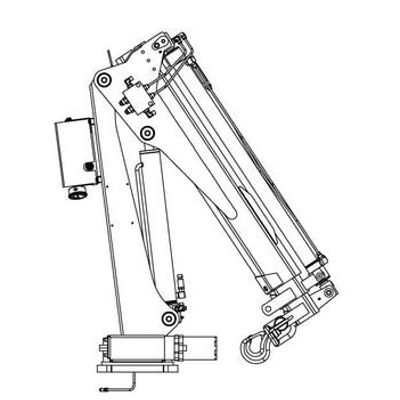

Stellar - Model TC13 -T-Boom Service Crane
Small but powerful, the Stellar TC13 Truck-Mounted T-Boom Crane packs a lot of muscle into a streamlined frame. 2,400-lb Capacity with 8.1′ of Reach.
Most popular related searches
- Space-Saving Design. Engineered to occupy minimum bed space while providing a high load-lifting radius.
- Proportional Radio Remote. Works with the CDT™ Radio Remote Control System for safe, convenient operation away from the load.
- Selection. Available as the standard TC13 and the optional TC13 With Winch.
- Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.
TC13 (standard)
- Crane Rating: 8,600 ft-lb
- Max Lifting Capacity: 2,400 lbs (1,090 kg)
- Maximum Horizontal Reach: 8.86` (2.7 m)
- Crane Rotation: 410°
- Operating Pressure: 2,750 psi
- Pump Capacity: 2.5 gal/min (9.5 l/min)
- Weight: 420 lbs (190 kg)
- Min. Rec. Chassis (GVRW)*: 10,500
TC13 with Winch (optional)
- Crane Rating: 8,600 ft-lb
- Max Lifting Capacity: 1,600 lbs (725 kg)
- Maximum Horizontal Reach: 8.86` (2.7 m)
- Crane Rotation: 410°
- Operating Pressure: 2,750 psi
- Pump Capacity: 2.5 gal/min (9.5 l/min)
- Weight: 560 lbs (254 kg)
- Wire Rope: 1/4" (0.63 cm) 7x19 GAC x 65` (19.81 m)
- Min. Rec. Chassis (GVRW)*: 10,500
