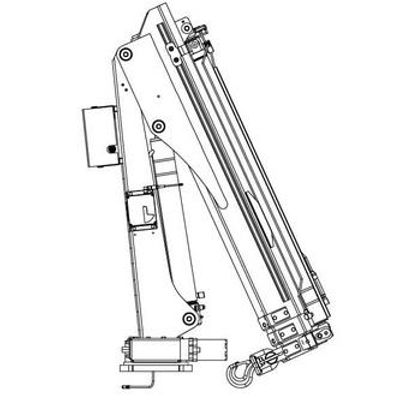

Stellar - Model TC23 -T-Boom Service Crane
Also available with a 3,745-lb capacity with 14′ of reach, the Stellar TC23 Truck-Mounted T-Boom Crane delivers the lifting capacity you need with the compact design you want. 3,970-lb Capacity with 11′ of Reach.
Most popular related searches
- Space-Saving Design. Engineered to occupy minimum bed space while providing a high load-lifting radius.
- Proportional Radio Remote. Works with the CDT™ Radio Remote Control System for safe, convenient operation away from the load.
- Selection. Available as the standard TC23 2H and the optional TC23 3H.
- Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.
TC23 2H (standard)
- Crane Rating: 16,635 ft-lb
- Max Lifting Capacity: 3,970 lbs (1,801 kg)
- Maximum Horizontal Reach: 11` (3.35 m)
- Crane Rotation: 410°
- Operating Pressure: 2,750 psi
- Pump Capacity: 2.5 gal/min (9.5 l/min)
- Weight: 580 lbs (263 kg)
- Min. Rec. Chassis (GVRW)*: 14,500
TC23 2H with Winch
- Crane Rating: 16,635 ft-lb
- Max Lifting Capacity: 1,600 lbs (725 kg)
- Maximum Horizontal Reach: 11` (3.35 m)
- Crane Rotation: 410°
- Operating Pressure: 2,750 psi
- Pump Capacity: 2.5 gal/min (9.5 l/min)
- Weight: 720 lbs (327 kg)
- Min. Rec. Chassis (GVRW)*: 14,500
TC23 3H (optional)
- Crane Rating: 16,635 ft-lb
- Max Lifting Capacity: 3,745 lbs (1,699 kg)
- Maximum Horizontal Reach: 14.1` (4.30 m)
- Crane Rotation: 410°
- Operating Pressure: 2,750 psi
- Pump Capacity: 2.5 gal/min (9.5 l/min)
- Weight: 660 lbs (299 kg)
- Min. Rec. Chassis (GVRW)*: 14,500
TC23 3H with Winch
- Crane Rating: 16,635 ft-lb
- Max Lifting Capacity: 1,600 lbs (725 kg)
- Maximum Horizontal Reach: 14.1` (4.30 m)
- Crane Rotation: 410°
- Operating Pressure: 2,750 psi
- Pump Capacity: 2.5 gal/min (9.5 l/min)
- Weight: 800 lbs (363 kg)
- Min. Rec. Chassis (GVRW)*: 14,500
