  5. T-Light - Model Galaxy - Base Station

T-Light - Model Galaxy -Base Station

SHARE

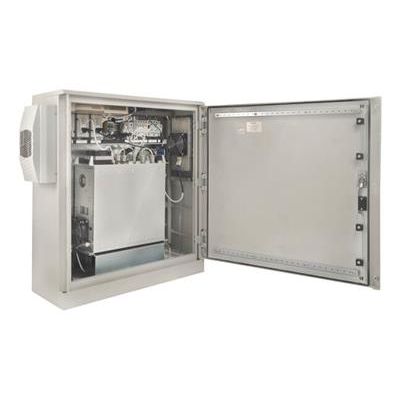

The T-Light Galaxy Base Station is a gateway installed inside a building and connected to the high antenna for wide area coverage. Backhaul communication between the Base Station and Control and Management System (CMS) platform is based on Ethernet/Fiber. Wireless APN is utilized as a backup backhaul communication infrastructure in case of Fiber network failure. The T-Light Galaxy Base Station is the system which enables communication between the CMS and all of the control points. Due to the robustness and radio performance of the T-Light Galaxy system, usually only one installation site is required to cover an entire mid-size city. One such gateway can control and monitor up to 50,000 control points.

Most popular related searches
traffic monitoring system
security system
traffic monitoring
disaster recovery
base station transceiver
remote monitoring
  • Serves up to 50,000 control points (depending on the system load requirements)
  • 10 km urban and up to 30 km rural coverage area (depending on terrain)
  • Local Network Management Server (NMS) and simplified local CMS provide wireless network and lighting network snapshots on site
  • Stores 1+ years of back data for all nodes for disaster recovery
  • Maintains network snapshot for easy recovery from power failure
  • Internet Protocol version 6 (IPv6) communication with the nodes/LCUs
  • Can feed data directly into multiple CMS systems and 3rd party applications via API
  • Open HTTP Rest API for third party integration
  • Can gather data from multiple types of wireless nodes beyond street lights and feed that data into applicable CMS systems such as MDMS, Traffic monitoring systems billing systems, etc.
  • Over the air firmware upgrades

Properties

  • Two-way network for sensor monitoring and remote control
  • Highly secure management system, can be integrated to security systems
  • External power supply not needed, unit powered by Internal battery

RF Specifications

Frequency: 450-470MHz- Licensed band
Bandwidth: 6.25KHz
Receiver Sensitivity: -120dBm@4.8kbps
Output Transmit Power: Up to +36dBm/4Watt
Certification: FCC Part 90.210, spectrum mask E
Range from Base Station to Transceiver: Up to 5km (depending on topography)
Range from Repeater to Transceiver: Up to 3km (depending on topography)
Range from Base Station to Repeater: Up to 20km (depending on topography)

Electrical Specifications

Battery life: 5 years
Lower Float Cable: Blue
Upper Float Cable: Red

Mechanical Specifications

Physical Dimensions: 186 x 138 x 138 mm
Cable Length: 10m
