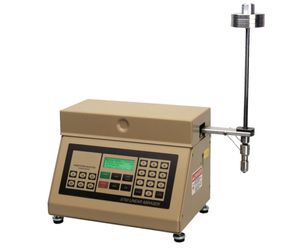

QINSUN - Model G270 / 5135 -Taber Abrasion Resistance Tester
TABER type Rotary Platform Abrasion Tester or Taber Abraser (Abrader) is commonly referred to as the Taber Abrasion Resistance Tester or Rotary Platform Head Tester.Most popular related searches
QB/T2726-2005，ASTM D4060、ASTM D1175、D1044，DIN53754、53799、53109、52347，ISO5470，GB/T4085。
01. Display mode: LCD display, stepless speed regulation;
02. Test piece: outer diameter φ108mm, inner diameter φ6mm;
03. Grinding wheel: φ2″(MAX.52mm)1/2″(W);
04. Wheel center spacing: 63.5mm;
05. The distance between the center of the grinding wheel and the test disc: 37~38mm;
06. Rotation speed: 60/72 rpm;
07. Load: 250g, 750g, 1000g;
08. Counter: LCD liquid crystal display, 0~999999, automatic shutdown;
09. The distance between the test piece and the vacuum cleaner: 3mm;
10. Power supply: 1∮, AC220V, 50HZ.
