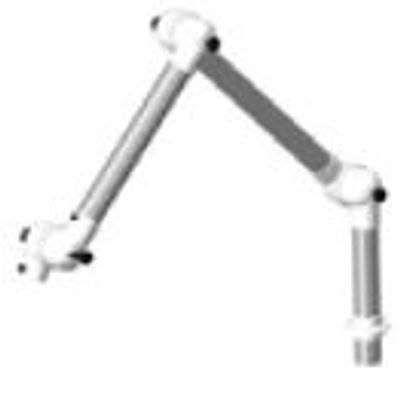

Alsident - Model 50 AL -Table Mounting Aluminium Extraction Arm

All components RoHS-compatible.

Most popular related searches

Extraction arm for mounting on table
Working range 445-1425 mm
Recommended airflow 45 to 85 m³/h
Diameter of tube Ø50 mm
Tubes made of anodized Aluminium - surface 10 μ
Joints made of shatterproof, chemical resistant polypropylene (PP)
Colour of joints: white (-5), red (-4) or black (-050)
All O-rings maintenance free
Integrated valve. When in an open position out of the flow path to maintain the maximum
amount of flow
All threaded stays, springs and thumbscrews made of acid-proof stainless steel (AISI 316L)
Acid-proof POP® rivets for increased durability in aggressive environments
All hoods can be provided with a protective netting to reduce the risk of extracting foreign
objects
Dismantling of the arm without tools for cleaning
