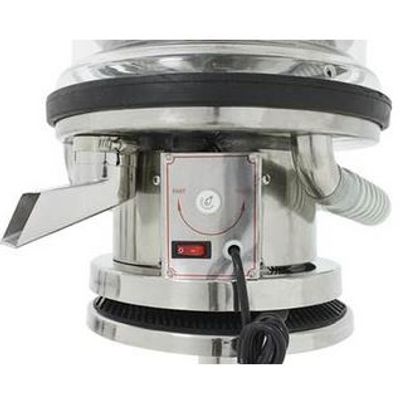

Ipharmachine - Model CFQ-310 -Tablet Screening Device Pill Deduster Machine

The machine is pharmaceutical processing equipment that removes the fine surface dust from tablets through using vibratory effect. It is suitable for dedusting all types tablets. Dedusting is achived in three steps process with throughput of approx. 550,000 tablets per hour. First the tablets are pushed by gentle vibration down a nine feet long perforated stainless steel tray to shake off the dust .  Then when the tablets reach the perforated bottom tray, the compressed air blows off any remaining dust. Finally the dust is removed by a vacuum dust collector. Vibration is easily adjustable using a Electronic Vibration Controller. All parts coming in contact with product are made of S.S. 316 and coveris made of acrylic.

Hints

This price is excluding vacuum cleaner.
The home-use cleaner that with32mm connector is suitable for this polisher.

Remarks

• Constructed according to GMP specifications.
• Easy height adjustment, full 360° freedom of rotation at tablet inlet.
• The process can be monitored visually at all times through the acrylic housing.
• Optimal dedusting and deburring capabilities thanks to a combination of vibration, dust agitation, air and vacuum suction.
• For cleaning the deduster can be disassembled easily and without tools by a single person.

Operation

After the Deduster Machine is placed smoothly, connect the vacuum cleaner according to the Vacuum cleaner interface and plug it in. Adjust the speed control knob on the machine to change the output speed.

Maintenance Installation and use environment of the machine

The requirement is room temperature, and it should not be used in high temperature, humid, acid and alkaline environment in the long-term, so as not to affect the service life, efficiency and precision of the equipment.

• Model CFQ-310
• Capacity 550,000pcs/hour
• Max Dimensions Φ25mm
• Compressed Air 1.8m³/min-0.01MPa
• Vacuum 0.1m³/min-0.05MPa
• Power Supply 220V 50Hz 1P/ 110V 60Hz 1P
• Power 75W
• Idle Load Noise ≤60 dB
• Weight (kg) 38kg
• Inlet Height 86-100cm
• Size 380*340*890mm
• Weight 31.5kg
