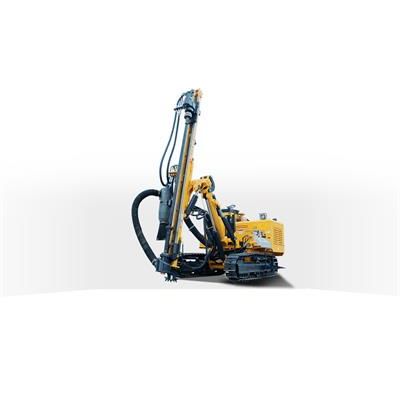

Taiye - Model 370-DTH-Ⅳ -Hydraulic Drilling Rigs
TAIYE370-DTH-Ⅳ hydraulic drilling rig is equipped with new powerful hydraulic powered rotary head and propulsion system, robust chassis and reliable brake system, featuring simple operation, high safety, excellent power, and dust collection solutions. It is developed with the aim to maximally reduce the boring cost while maintaining high performance.
Most popular related searches
hydraulic drilling rig
drilling rig
hydraulic drilling
blasthole drilling
hydraulic rig
dust collection
dust control
drilling rig equipment
underwater drill
DTH drilling rig
- The drilling rig product is widely used in the open-pit blasthole drilling and underwater blasthole drilling projects for metallurgy, mining, building materials, railroad construction, hydropower projects, national defense, earthmoving work, etc.
- Working pressure (Mpa) 1.05-2.46
- Drilling diameter (mm) 90-165
- Drilling height (m) 3.38
- Gradeability (°) 30
- One time propulsion (m) 3
- Rotation speed (rpm) 0-76
- Compensation length (mm) 1200
- Hook height (kw) 570
- Machine power (kw) 70 /82
- Machine weight (kg) 6400
- Dimension (mm) 3150×2170×2300
- Sliding frame swing (°) Left 50/Right 35
- Drill boom swing (°) Left/Right, 45
- Drill boom pitching (°) Horizontal, 60/19
- Sliding frame pitching (°) 135
- Rotary torque (Nm) 3000
- Sliding frame stroke (mm) 3891
- Lifting force (Kg.f) 2000
- Hammer type (DTH) CSJB 3.5”/4”/5”/6”
- Dust removal Dry/Wet, optional
- Transport width (mm) 2188(wet) /2300(dry)
- Engine YC4D95Z-T11/4BTa3.9-C110
- Manufacturer Guangxi Yuchai Machinery Group Co., Ltd./Dongfeng Cummins Engine Co., Ltd.
- Working speed (rpm) 2200
- Fuel tank (L) 125
