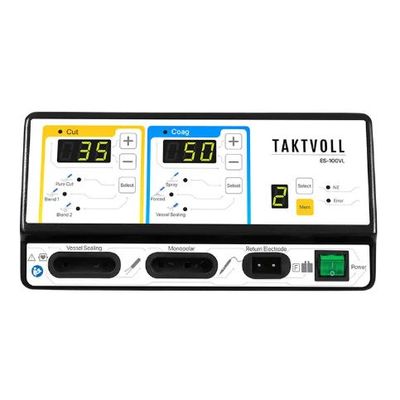

Taktvoll - Model ES-100VL -Vet Vessel Sealing System
ES-100VL Vet Vessel Sealing System can fuse vessels up to and including 7 mm. It’s simple to use, Intelligent and safe, it can be used in both laparoscopic and open procedures across a range of surgical specialties.

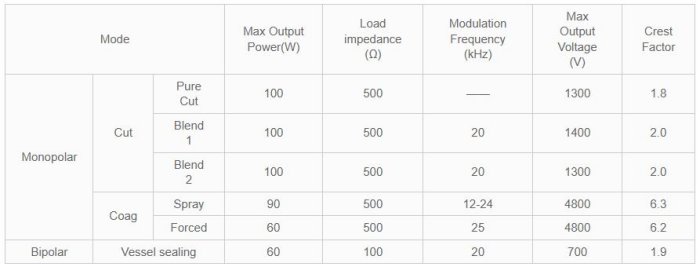

3 monopolar cutting modes: pure cut, blend 1, blend 2, blend 3
Pure cut: cut the tissue cleanly and accurately without coagulation.
blend 1: Use when the cutting speed is slightly slow and a small amount of hemostasis is required.
blend 2: Compared with blend 1, it is used when the cutting speed is slightly slower and a better hemostatic effect is needed.
2 coagulation modes: spray coagulation, forced coagulation, and soft coagulation
forced coagulation: It’s non-contact coagulation. The output threshold voltage is lower than spray coagulation. It’s suitable for coagulation in a small area.
spray coagulation: high-efficiency coagulation without contact surface. The coagulation depth is shallow. The tissue is removed by evaporation. It usually uses a Blade or ball electrode for coagulation.
1 bipolar output mode: Vessel Sealing mode:
Provide exceptional coagulation and transection of vessels up to 7mm in diameter.
