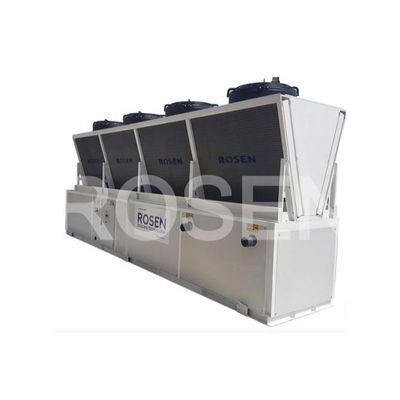

Tamutom - Chiller Water Cooler

While Increase of concrete temperature;

• Increase of concrete water demand
• Imbalance occurs during a set time
• Sweating speed increases
• Crack formation is observed in drying rashes
• The appearance of distortions
• Chiller Water Cooling System Features
• Sample models for the chiller water cooling system can be found below, please contact our sales & technical team for different capacities.

Model CH 40 KW

• Compressor 20 HP Semi-Hermetic
• Cooling capacity 43 KW / H
• Water pressure 7.4 m3 / h
• Energy consumption 15 KW / h
• Electric Voltage 380V, 3 Phase, 50-60Hz
• Maximum operating amps 38
• Water connection size 2 "

Model CH 110 KW

• Compressor 50 HP Semi-Hermetic
• Cooling capacity 113 KW / H
• Water pressure 19 m3 / h
• Energy consumption 40 KW / h
• Electric Voltage 380V, 3 Phase, 50-60Hz
• Maximum operating amps 80
• Water connection size 3 "

Model CH 225 KW

• Compressor 2 X 50 HP Semi-Hermetic
• Cooling capacity 225 KW / H
• Energy consumption 80 KW / h
• Electric Voltage 380V, 3 Phase, 50-60Hz
• Maximum operating amps 120
• Water flow: 38 m3 / hour

Model CH500 KW

• Compressor 2 X 110HP Screw
• Cooling capacity 508 KW / H
• Energy consumption 160 KW / h
• Electric Voltage 380V, 3 Phase, 50-60Hz
• Maximum operating amps 240
• Water flow 87 m3 / h

Model CH1000 KW

• Compressor 2 X 210HP Screw
• Cooling capacity 1002 KW / H
• Energy consumption 350 KW / h
• Electric Voltage 380V, 3 Phase, 50-60Hz
• Maximum operating amps 500
• Water flow 173 m3 / hour

• The chiller system is one of the solutions for concrete cooling.
• Maximum 10C water outlet temperature.
• We suggest if the 10 C water temperature can enough for your concrete batching plant.
• Modular type and containerized type are available.
