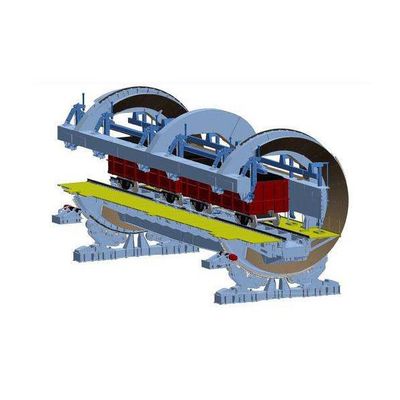

Saikrupa - Tandem Rotary Wagon Tippler

Designed & engineered in accordance with: Rdso guidelines for wagon tipplers g33 Bs en 13001 – crane design. Capacity: 2 x 140 Tonne wagons. Time to time & return: 48 seconds (up to 30 seconds). Power rating: 2 x 75 kw (Based on 48 second operation). Angle of tip: 170 degrees (nominal). Wagons dimensions / range: Length 14.083 m – 10.713 m, Height 4.000 m – 2.293 m, Width 3.660 m – 3.130 m. System throughput: Minimum 50 wagons per hour (Paired with suitable train moving equipment). Rotating mass: 264 Tonnes. Design life: > 2 x 106 Cycles.
