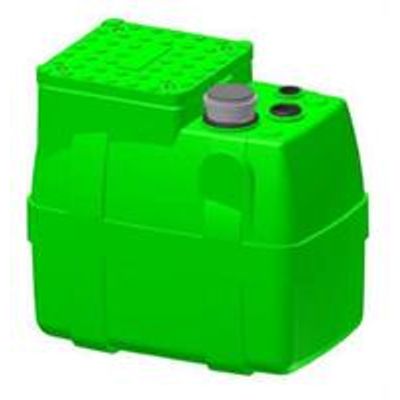

Soggia - Model S-BOX 200 & 600 -Tank for Wastewater Lifting Station
Tank for wastewater lifting station in stamped polyetilen in 200 or 600 liters versions. Implemented for the collection of domestic wastewater and used as lift station to pump wastewater into discharge collectors located at higher levers or that do not have a gravitational drop.
- Inlet: n.1 seal Ø 110
- Outlet: n.1 seal 2”
- Breather: n.1 gasket Ø 50
- Electric connection: n.2 glands for 200 lt / n.4 glands for 600 lt
- Outlet pipes kit 2”x63mm in PVC with coupling (2 pipes for 600 lt)
- Ermetic closure with upper cover with EPDM (2 cover for 600 lt)
Lifting station, for the collection of domestic wastewater, to pump it into discharge collectors located at higher levers or that do not have a gravitational drop. Can be easily installed in garage, basements or buried.
S-L/FT installed with n.l water pump with Vortex impeller with solid Passage of 50 mm (SVG o SVX) in 1,00 or 1,50 hp versions.
S2-UFT installed with n.2 water pump with Vortex impeller with solid Passage of 50 mm (SVG o SVX) in 1,00 or 1,50 hp versions.
Upon request can be customized with more accessories such as valves, ball valves or fittings.
