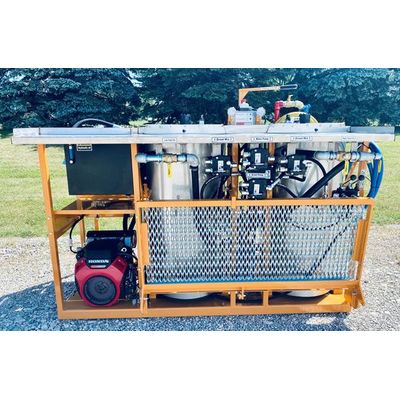

Geo-Loop - Model 30-500 2 -Tank Gas Grout Pump

FromGeo-Loop Inc.

SHARE

5″ bore, 8″ stroke piston pump with two chrome lined cylinders featuring hammer union construction.

Most popular related searches

stainless steel mixing tank

grout hose reel

high-pressure washing

5″ standard A-style piston rubbers
Stainless steel paddle mixer with hinged lid cover(s)
Stainless steel replaceable valve seats
Fork lift pockets on both ends of the framework
Durable powder coat paint finish, custom colors available upon request at additional charge

GPM / Pressure: Continuously pumps 0-30 gallon per minute at pressures up to 500 PSI
Mixing Tank: Two 56 gallon stainless steel mixing tanks with smooth taper cone bottom (optional 80 gallon tanks are available)
Engine: Honda GX690 approximately 27 HP electric start engine
Hydraulic Pump: Tandem hydraulic pump with two hydraulic circuits for ease of operation
Hour Meter: Easy-to-read hour meter and tachometer
Water Fill Pump: High capacity self prime water fill pump and high pressure wash down line
Hydraulic Oil Reservoir: 20 gallon hydraulic oil reservoir with a sight glass and thermometer
Oil Cooler: Thermostatically controlled oil cooler with a 12 volt fan
Bag Platform: Large stainless steel bag platform
Piston Pump: Piston pump covered by United States patent D405-454
Footprint: 86” x 40” footprint frame, 40 ½” bag platform height
Weight: Approximate weight of 1,700 pounds

Grout hose reels
Loop reels
Custom trailer mounts
Water tanks
Pallet tables
Many other Geo-Loop grouting accessories available
