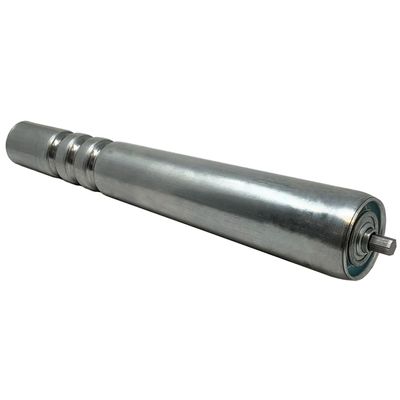

Ashland - Model TAP16X25X14GAGB153GR -Tapered Conveyor Roller
The Model TAP16X25X14GAG roller is a tapered, spring retained conveyor roller constructed of a 2.5" diameter 14 gauge galvanized steel tube with a 7/16" hex plain steel shaft.
Most popular related searches
- Between Frame (in): 15"
- Roller Tube: 2.5"x14ga Galv Stl
- Small Dia: 1.67"
- Large Dia: 2.50"
- Rate of Taper: .060" per inch
- Grooves: 3
- Shaft: 7/16" Hex Plain Stl
- Bearing: Commercial Light oil
- Roller Retention: Spring (large end)
- Capacity (lbs): 250
- Weight (lbs): 4
