TARUS - Horizontal Arm CMM for Large Volume Applications
The TARUS Horizontal Arm Coordinate Measuring Machine (CMM) is engineered for large volume applications including body in white, aerospace parts, and other sizable components. The system features advanced CMM controls and software which facilitate precise measurements and data acquisition essential for industries such as automotive, defense, and power generation. The horizontal arm design allows for comprehensive examination of larger parts that are beyond the capacity of traditional CMMs. With options for installation customization, TARUS ensures a seamless integration into various manufacturing environments. The machine supports detailed calibration, repair, and retrofit services that maintain optimal functionality and accuracy over time. Additionally, the TARUS Horizontal Arm CMM is built with robust materials to endure heavy industrial use, ensuring long-term reliability and performance.Most popular related searches

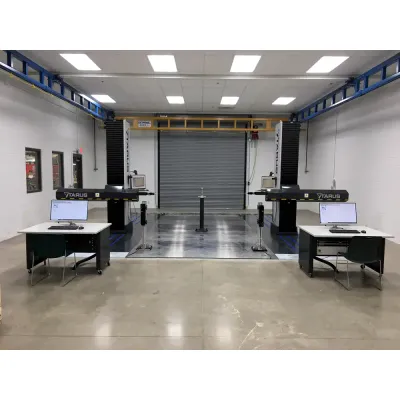

Horizontal arm CMM for very large volume applications, such as body in white, boat building, or any range of larger applications.
- Machine with walkable base
- Stress relived rigid steel structure for all axis
- All-axis motion with backlash free rack & pinion systems
- Free floating linear optical scales with 0.5 μm resolution
- High specific modulus carbon fiber 80×80 mm arm
- Choice of Renishaw probe heads with touchtrigger, scanning and 5-axis (Revo)
- Renishaw .1 micron optical scales
- Nikon laser scanning head with Polyworks
- Tsunami air filtration system
- Custom computer workstation table
- Battery backup with surge protector
- Two year complete system warranty
- Full support and calibration by TARUS, ISO/IEC 17025:2017 Accredited
- Cast iron surface plate is available in customized options of tapping, guided holes, load capacity etc.
- Available in duplex module, flush to floor installation of machine
