TARUS - Model DHMS -Multiple Spindle BTA Deep Hole Drilling Machine
The TARUS DHMS Multiple Spindle Deep Hole Drilling Machine is designed to enhance productivity and precision in drilling applications, particularly essential for the power generation industry including nuclear power plants. In Pressurized Water Reactor (PWR) nuclear power generation, the primary and secondary circuits must remain separate, and the tube sheets in heat exchangers play a critical role in this process. The DHMS drilling machine addresses the challenge of drilling thousands of precise holes in tube sheets by enabling multiple spindles, which are independently controlled by CNC programming. This allows for the selective engagement and disengagement of spindles and drill nose pieces, optimizing drilling cycles and avoiding conflicts. Additionally, the machine features a sophisticated tool life management system to monitor drill usage and ensure timely replacements. The DHMS can be configured with 2 to 5 spindles, each equipped with separate drill pumps, and a choice of CNC systems to meet specific operational needs.The TARUS DHMS Multiple Spindle Deep Hole Drilling Machine solves a big problem as a result of clever design.
A modern power generation station requires many different types of heat exchange and process equipment. The most critical of all, especially for the nuclear industry, is the steam generator. In Pressurized Water Reactor (PWR) nuclear power generation, the primary cooling circuit flows through the core of the reactor under very high pressure. The secondary circuit generates steam to drive the turbine. The primary and secondary circuit must remain separate from each other, without fail. It's the most critical sub-assembly of one of the most critical aspects of a nuclear reactor.
Tube sheets are a central component in a shell and tube heat exchanger. Tube sheets have thousands of small diameter holes drilled very close to each other at fixed distances referred to as 'pitch'. Adding multiple spindles increases drilling productivity, but as the spindles near the edge of the tube sheet, not all the spindles are able to drill without conflicting with the lip.
Most other multiple spindle drilling machines drive the drill feeds of all the spindles simultaneously. In order disengage a drill to avoid conflict near the edge of the tube sheet, the drill that is not to be used must be physically removed. Furthermore, the drill bushing nose piece must be removed.
The TARUS DHMS is better. The drill feeds and bushing nose pieces are independently driven and controlled by the CNC and can be programmed to be used in any combination for any cycle. For example, all five spindles can run for one cycle, and the very next cycle can extend any chosen nose piece and drills.
To make this function even more useful, TARUS developed sophisticated tool life management system to keep track of when a drill was changed and when it is due to be changed again even if the use of the spindles is not uniform and also in the event that a drill was changed out of cycle due to wear or damage.
The DHMS is available with 2 to 5 spindles. Spindle vertical spacing (pitch) is manually adjusted as needed.
- 2 to 5 Spindles
- BTA only
- Gundrill only

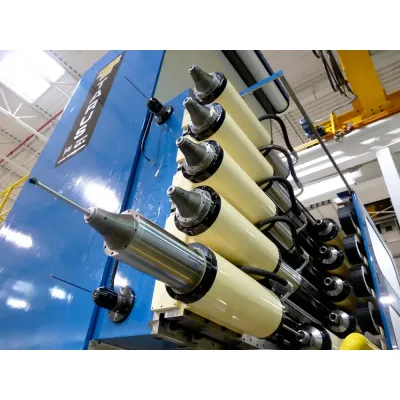

Drill nose pieces are separately controlled and can be engaged or disengaged in any combination to maximize the drilling efficiency and avoid collision with flange or edge of sheet.
Drill feed are separate so any drill can be used as needed or retracted without the need to remove unused drills.
Drill feed by planetary roller screws for compactness plus maximum strength and stiffness.
Separate drill pumps for each spindle.
