Car-Tex - TD Trailer

FromCar-Tex Trailer Company,Inc

SHARE

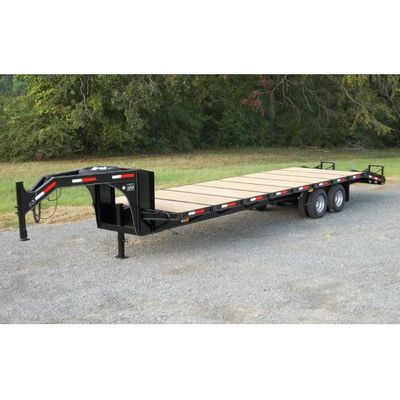

Heavy duty gooseneck structure utilizing 16” 26# I-beam frame. Double channel neck (8” channel with 7” channel inside). Cross member’s 4” channel on 40” centers with gussets to frame. 5” channel side rails with built in channel pockets for tie downs. Treated pine floor 2×6 and 2×8 placed accordantly. 5’ dovetail with 4” channel double hinged ramps. Trailer is sandblasted, Primed with 2 coats of universal alkyd primer, and 2 top coats of high gloss synthetic enamel. Deck height 39”. Spare tire & wheel.

Most popular related searches

tandem axle utility trailer

UNDERCARRIAGE

2-10000# Dexter heavy duty axles w/oil bath hubs
6-leaf 3” wide slipper spring suspension w/medium length equalizer
Electric brakes on all wheels using 10 ga. wiring w/soldered connections
ST235/85R16 LR-E tires (radials)
16” dual flat face wheels
HD rubber mud flaps

COUPLER & JACK

Adjustable 2-5/16” HD coupler (4-1/2” round tube)
3/8” HD safety chains w/snap hooks
Single 12000# drop leg jack

LIGHTS & ELECTRICAL:

DOT required lighting and DOT-C2 reflector tape
14 ga. double insulated wiring w/3M moisture-resistant tap connectors
Wiring is installed inside pipe for extra protection
6-way plug
Emergency breakaway system for brakes
