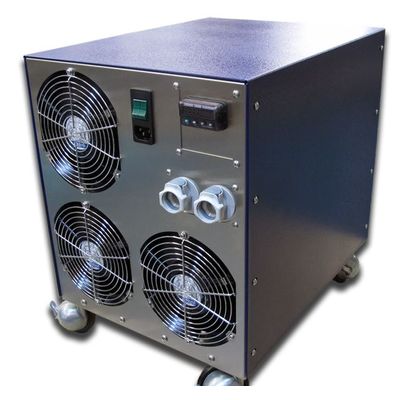

TECA - Model TFC-2700 -Air Cooled Thermoelectric Liquid Chiller
Features: Integral PID “tunable” temperature control. No pump, no reservoir, insert directly into your flow. Through flow temperature controlled cooling and heating. Always cold/warm, never freeze/boil for intermittent flows. No compressor, fluorocarbons or filters. Virtually maintenance-free operation. Mobile platform on locking wheels. Integral power supply for 100-240 VAC operation. Painted stainless steel exterior. Front to back air flow. No Compressor, fluorocarbons or filters. Virtually maintenance free operation.
Style: Wheeled Mobile Platform
Voltage: 100-240 VAC`
Current: 11-4.6 AMPS
Operating Ambient: 0/+50 °C
Tfc 2700 Data Sheet (2.3M)
Performance Rating:
Cooling Capacity: 830 WATTS (through flow in-out)
Cooling Capacity: 1000 WATTS (recirculating)
Includes:
- Integral power supply and temperature control
- 3/8” ID Hose (12’)
- Hose insulation (12’)
- 3/8” CPC low pressure drop shut off fittings
- North American power cord
Options:
- Basic communication with software
- RS-485 Modbus communications
- Quiet operation, fixed temperature, fan speed control
- Exterior paint color
