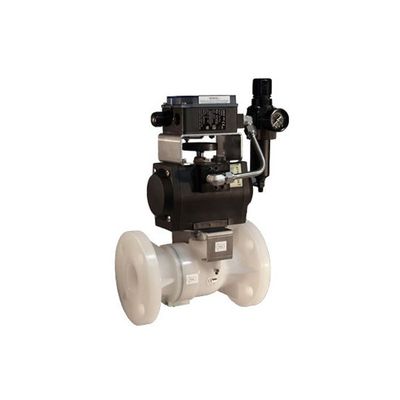

Techlink - Flow Control Valves for Corrosive and Abrasive Chemicals
Control valves are often short lived in corrosive chemicals, particularly in the presence of particles. It is an area of chemical engineering where applying traditional knowledge simply does not work.
Techlink Flow Control valves are designed to offer the best resistance to corrosive and erosive chemicals and a low pressure recovery at a very attractive price!
The purpose of a control valve is to create a pressure drop following the requirements of the process. TECHLINK V-orifice flow control ball valves are designed and built according to the process data. The V-orifice is shaped by CNC machining to deliver the required flow characteristic curve. All new patterns are tested on a loop to confirm the flow curve. The ball and the V-orifice mask are usually made of PVDF to provide the maximum resistance to erosion.
- Economical with an attractive price and low maintenance.
- Erosion and corrosion resistant.
- Low pressure recovery (high FL factor).
- Lightweight and mechanical strength.
- Excellent regulation performance.
Industries:
- Chlor-Alkali Plants
- Water treatment plants
- Paper pulp mill
- Battery materials plant
Typical fluids:
- Brine
- Wet chlorine
- Hydrochloric acid
- Caustic soda
- Sodium carbonate
- Sodium hypochlorite
- Ferric chloride
- Zinc sulfate
- Copper chloride
- Sodium chlorate
- Sulfuric acid
- Chlorine dioxide
- Sodium sulfite
- Bromine
- Lime water
- Aqua regia
- Copper sulfate
- And more!
