Technical - Model 10000 Series -Safety Valve

SHARE

Where there are design requirements that are not in the standard, the valves of this series often provide the solution: the inlet / outlet combination can be customized for each requirement.

Most popular related searches
high-pressure pump
piston valve
balancing valve
utility pump

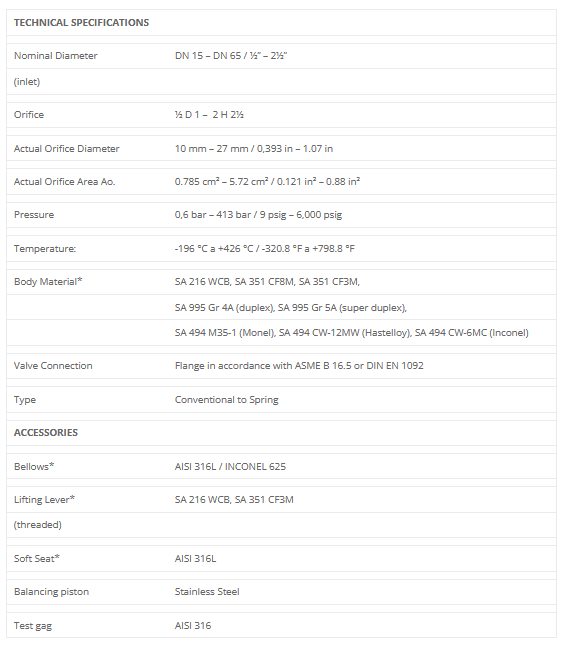

The availability of orifices from D to H and the possibility of set pressure up to 413 bar, allows to find the best solution for each installation. The standard versions has carbon steel or stainless steel body and stainless steel trim; special materials are available upon request.  The valves of the10000 series give many options for what regards the accessories: test gag, soft seat, lifting lever, bellows or balancing piston.

These valves are mainly used in the Oil & Gas, but are utilized on high pressure pumps for metal forging and mining industry. The certifications available are:PED, EAC , ASME UV-Stamp(only for gas).
