Technion - Model TDC130 -3.2-inch CAN Display

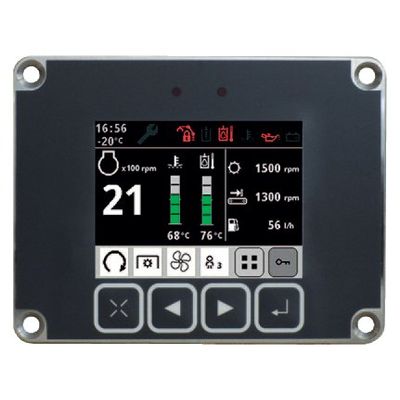

TDC130 is a compact CAN-based display module finally making the replacement of analog instrumentation feasible. In order for high-quality graphical elements to be displayed on screen, we selected a display that offers you a much better contrast and user experience than traditional passive matrix displays. We designed the TDC130 display so that adding it to existing control systems would be cost-effective and simple, making it a suitable option even for cost-critical machines. Modernizing your machine with the TDC130 display is a cost-saving solution that will provide you with more informative and elegant data.
Maximum reliability in a compact package
The compact and slim TDC130 display has been designed to meet the high quality standards set by Technion. It comes with an IP65 enclosure and can be used inside the driver’s cabin as well as in outdoor applications, such as in aerial platforms. The isolated CAN design offers maximum reliability and the product can freely be used in locations where grounding may be weak.
Fast time-to-market
Technion has released a simple user interface configuration tool called TeGUI to speed up your development phase. TeGUI makes organizing your information on the screen easy and efficient, and you will be able to design your graphical user interface in no time at all. Using the tool does not require a license. In addition to the display, the package includes two bicolor LEDs, four buttons and a buzzer that further improve the functionality of the user interface.
CPU: 32-bit architecture, 125 DMIPS performance
Memory: FLASH 512kB
Data FLASH 16MB
RAM 64kB
Supply voltage range: 9V - 32V (operational overvoltage 36V)
Supply current, logic: 0.1A
Panelmount stainless steel and polycarbonate /
118mm x 91mm x 27mm (W x L x H)
Housing: -25...+60°C
Temperature range, operating: -40...+75°C
Temperature range, storage: IP67 frontside, IP65/IP30 backside
Protection: M12 A-coded (2pcs)
Connectors: M12 mini-USB (1pcs)
Plug-In connector (1pcs) (order option)
Display: 3.2” QVGA TFT, contrast ratio 500, viewing angle 55°
Keyboard: 4-button membrane keypad
Other: Two bi-color LEDs, real time clock with back-up
capacitor, buzzer
CAN x 1pcs: ISO 11898-2
CAN x 1pcs: ISO 11898-2, with galvanic isolation
USB: USB 2.0 Full Speed, 0.1A
Electrical requirements: ISO 16750-2
Mechanical requirements: ISO 16750-3
Climate requirements: ISO 16750-4
Construction machinery - EMC: EN 13309:2010
Agricultural and forestry machinery - EMC: EN ISO 14982:2009..
Earth-moving machinery - EMC: ISO 13766:2006..
Application development environment: TeGUI editor
