Technion - Model TEC122 and TEC132 -Extension Module for Interfacing with Sensors and Joysticks

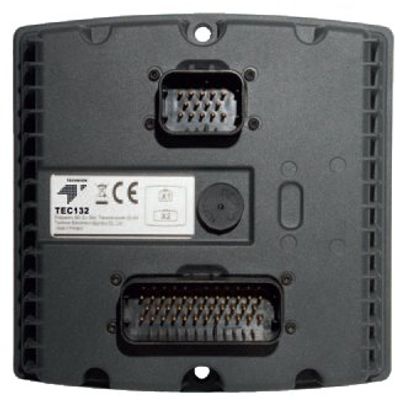

TEC132 is a perfect choice for the main controller of a simple control system. It can also be used as an output-oriented extension module in distributed control systems. Although TEC132 is a compact and economical solution, it has a total of 34 programmable I/O ports that are all protected against incorrect connections and electrical disturbances in vehicular environments. TEC132 supports CODESYS v2.3 development tools. It’s a small package full of features.
CPU: 32-bit architecture, 65DMIPS processing capacity
Memory: Flash 512kB, for CODESYS application 224kB
Data EEPROM 64kB, for CODESYS application 63kB
RAM 96kB, for CODESYS application 16kB
Supply voltage range: 9V – 32V (overvoltage rating: 36V operational)
Supply current, logic: 0.15A
Supply current, outputs: 20A (maximum)
Housing: Glass Fiber Reinforced PA, electroplated steel
152mm x 152mm x 59mm (W x L x H)
Protection: IP67
Temperature range, operating: -40°C … +75°C
Temperature range, storage: -40°C … +85°C
Connectors: TYCO AMPSEAL 35 positions (1pcs),
TYCO AMPSEAL 14 positions (1pcs),
M12A-coded (1pcs) in RS485 option
CAN x 2pcs: ISO 11898-2
Serial: RS-232, RS-485
Electrical requirements: ISO 16750-2
Mechanical requirements: ISO 16750-3
Climate requirements: ISO 16750-4
Automotive EMC directive: UNECE regulation No.10
Construction machinery - EMC: EN 13309:2010
Agricultural and forestry machinery - EMC: EN ISO 14982:2009
Earth-moving machinery - EMC: ISO 13766:2006
Application development environment: CODESYS V2.3
