Techno-AC - Model MAG-05 -Pipe Transmitter Set

Guide for Tracing of nonmetal pipelines MAG-05

Above all, portable pipe transmitter MAG-05 should be placed in the located utility with cable pulling system. Firstly, the transmitter emits electromagnetic signals.

Secondly, while moving the receiver perpendicular to the utility axis, the receiver sensor acquires the signal with two distinct local minimum values, general maximal signal and two false peaks. However, if the receiver is placed across the utility axis local minimum values and false peaks are missing.

For example, To pinpoint the pipe transmitter an operator should locate two local minimal signals and one general maximum signal.

Meanwhile, the position of the pipe transmitter will be in the spot with maximum signal. The true depth of the pipe transmitter (i.e. the utility) can be measured only when the receiver is placed correctly above the pipe transmitter. Further, the transmitter is positioned horizontally in the pipe.

Brief description MAG-05

In conclusion, if there is an access to the pipe from two sides, the set of pipe transmitter MAG-05.2.XX allows to ensure safe removal of the pipe transmitter by using additional wire rope.

In this case an operator should do the following:

• Mount the Plug on the end of pulling system instead of pipe transmitter;
• Push the Plug with pulling system to the other end of the pipe or to the nearest spot of access to the pipe;
• Replace the Plug with the pipe transmitter with installed accumulator and Cap;
• Connect the cap to wire rope with the clasp;
• Trace the utility by moving the pipe transmitter with pulling system and wire rope.

Therefore, if pipe transmitter is stuck in the utility or the pulling system rod is broken, the pipe transmitter can be extracted from the utility by pulling the wire cable.

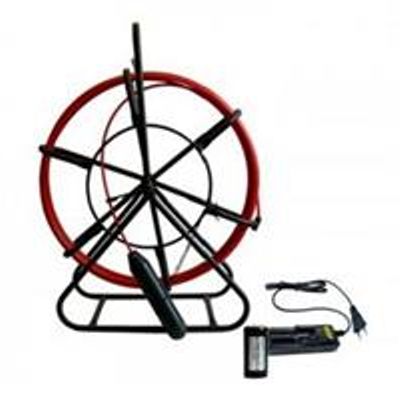

Standard setThe set of pipe transmitter MAG-05.1.ХХ contains

• Firstly, Cable Pulling System
• Secondly, portable pipe transmitter MAG-05
• Further, Accumulator
•  In addition, Charger

• Transmitter frequency 512Hz
• Diameter of pipe transmitter 40 mm
• Weight of pipe transmitter 318g +-20g
• Pipe transmitter operation time up to 5 hours
• Pushing rod of Cable pulling system diameter 6 mm
• Additional wire cable diameter 2 mm
