Technobalt - Model Fenner Dunlop Ferroflex -Elevator Belts

• Type: Textile, multi-ply
• Best for: Crushed rocks, Potash
• Location: Above ground
• Available resistances: Abrasion, Anti-static, Cold, Fire, Heat resistance, Oil resistance, Ozone & UV, Rip & impact

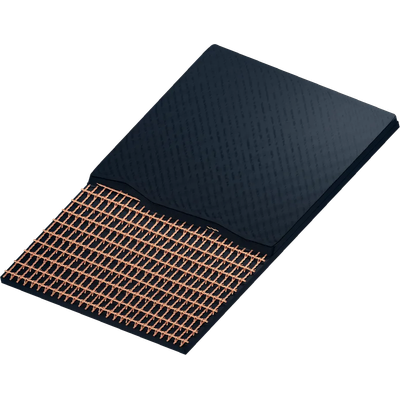

The highly successful Fenner Dunlop Ferroflex elevator belt has a steel reinforced carcass construction with particularly good low elongation characteristics. This makes it ideally suited to elevators with short take-up systems. Ferroflex ‘SW’ has a tension layer composed of longitudinal steel cords, through which power transmission is effected, together with two transversal layers of steel cords situated on either side of the longitudinal steel cords. These transverse steel cords reinforce the belt to provide outstanding durability and excellent bucket and fastener strength. Other significant advantages of the Fenner Dunlop Ferroflex carcass include high bolt tear resistance, excellent clamping characteristics and its suitability for use on conveyors with small pulley diameters. In addition to the Ferroflex SW standard ‘full width’ steel-reinforced carcass, there is also the Ferroflex FKS, which has custom-made ‘cable-free zones’. These zones make the installation of buckets and fasteners easier and help to create a dynamically stronger endless belt.

Ubeatable Quality

Technobalt Eesti is based in Tallin, Estonia with branch offices in Latvia and Lithuania. Our primary activities are the supply of hi-performance conveyor belts, components and industrial supplies together with the provision of conveyor maintenance services ranging from a single conveyor right through to a complete maintenance solution.

Our sales and service network covers all of the key regions in the Baltics, assisting end-users across a wide cross-section of different industries including mining, quarrying, energy, waste management and paper industries.
