Future ready. Support for LTE Cat M1 and NB-IoT leverages low power network capability for greater energy efficiency
Flexible communication build options supporting either 2G only; 2G / 3G; or 2G / NB-IoT / LTE Cat M1
Physical build options for up to two pressure and eight user programmable digital or analogue inputs
Two independent digital outputs configurable for external power control, alarm signalling or switching 12 Volt outputs for powering 4-20mA loops
Proven bidirectional Cello communication with automatic gap filling ensuring high level data reliability and supporting remote product configuration
Remote set-up, monitoring and control through locally deployed PMAC software or web based WaterCore platform
Models available to facilitate closed loop control of pressure reducing valves, pressure sustaining valves and variable speed pumps
Water temperature measurement
Advanced channel profile and threshold alarms
High frequency (100 Hz) pressure transient detection critical to extending asset life and network modelling
Low power design. Support for external battery packs and DC supply
Rugged, portable and waterproof to IP68

Typical remote monitoring applications include, but not limited to:

Transmission: Supply Pressure, Transient Recording, Flow
Pressure Managed Areas: Advanced Pressure Control, Control Valve Stability, Distribution Flow, Average Zonal Pressure, Levels of service, Water Temperature, Step Testing
District Metered Areas: Flow, Automated Meter Reading
Effluent and Waste Water: Sewer Level, Discharge consent levels, Open Channel Flow dissolved Oxygen, Hydrogen Sulphide, Turbidity
Reservoirs & Storage Tanks: Level and Overflow
Rivers and Streams: Flood Warnings, Flow, Water Quality
Weather: Rainfall, Humidity, Temperature and Wind speed
Farming & Irrigation: Soil Moisture
Pumping Stations: Pressure Control, Duty Cycle, Run time, Status and Efficiency
Water Extraction & Wells: Level, pH
Water Treatment Plant: Water Quality, Chlorine Dosing, Turbidity,
Power & Energy: 3-Phase supplies, Current consumption, Metering
Customer Service: Levels of service, low pressure complaints, data access over the Web

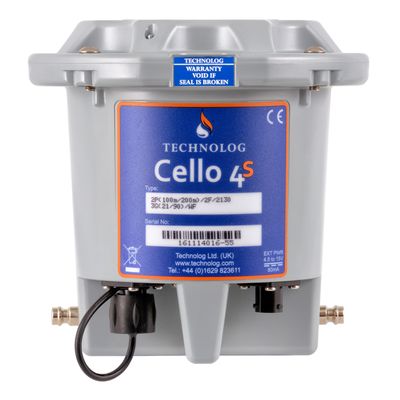

Technolog - Model Cello 4S -Remote Telemetry Outstation

Key Features
