Tecnidro - Model TIC 12 -DC/AC Modular Backflush Controller

This controller introduces new functionalities and an enhanced user interface to simplify the operation in field, parameter setting by rotary selectors, typical of TIC unit, has been kept also for the TIC12 model as it represents a very simple and immediate modality to set the main parameters of the device.

The units is provided with a large LCD display to immediately verify unit parameters and status, it is also provided a Bluetooth interface that allows to entirely manage the controller using a simple and intuitive APP.

Moreover in the scenario of AGRICOLTURE 4.0 the controller can be equipped with a HYDRONET GPRS interface for the  anagement of the device in a Cloud environment with remote notification of every operational status and parameters.

MODULARITY

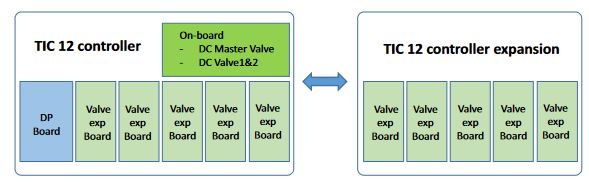

The TIC12 is a modular controller suitable to manage 1-12 stations DC or 1-10 stations AC in steps of two with expansion boards. Optionally, with a dedicated expansion board, the controller can be equipped with a differential pressure sensor.
In addition it is available an expansion TIC12 unit that can add up to n.10 stations to the main unit for a total of n.22 stations DC or n.20 stations AC

The basic DC version is already provided with built-in n.2 station valve control and master valve control. This configuration represents a cost effective solution for small system, the expansion capability, as above described, grant to the farmers the possibility to expand filtration system as needed and to adapt the Tecnidro controller also to very large systems.

TIC12 controller can be provided in different versions with LCD display or with Bluetooth module, already configured with a specific number of stations and also including the DP sensor, the latching solenoids ELBA and the 3-ways backwash valves available 2", 3" and 4" size
