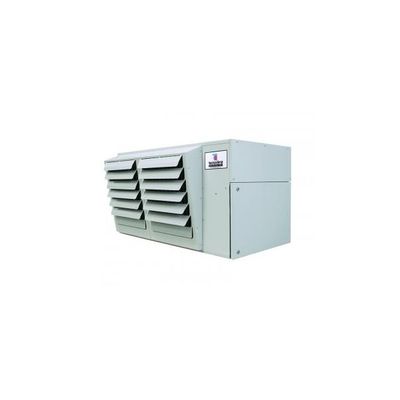

Tecnoclima - Model PMX -Direct Diffusion Suspended Version
PMX - premix condensing unit heaters for indoor suspended installation with direct air diffusion into the environment (axial fan).
Tecnoclima premix gas suspended warm air heaters have many advantages:
- heat capacity of the premix burner has a wide modulation range: from 100% to 30% of the nominal heat capacity;
- thanks to the modulation of the thermal capacity, as the demand for heat from the environment decreases, very high efficiency values are reached, up to 106%, with many benefits in terms of environmental comfort and the reduction of gas consumption;
- the premix burner allows perfect mixing of the gas with the combustion air obtaining a semi-radiant flame band with very low emissions of nitrogen oxides, NOx: Class 5 of emissions
- very high thermal efficiency and progressive modulation of the thermal power contribute to obtain operating cost savings of over 30% compared to traditional systems.
Condensing sealed warm air heaters with modulating premix gas burner, PMX range, are designed to be installed inside the environment and to diffuse the air directly into the environment to be heated. The PMX heaters has a diffuser panel with fins that are individually adjustable (vertically and orizontally)to direct the flow of warm air into the environment. The axial fans adopt motors with high energy efficiency and silent operation. The unit operates with variable thermal power with continuous modulation, fully automatically regulated from the remote control panel with integrated or remote environment temperature probe. The warm air heaters, thanks to the continuous modulation of the thermal capacity, decreases automatically the heating power, reaching performance values of up to 106%, consuming less fuel and ensuring ideal comfort and significant overall operating economy.
The PMX warm air heaters finds application in the heating of industrial and commercial environments, facilities for sports, entertainment, etc.
