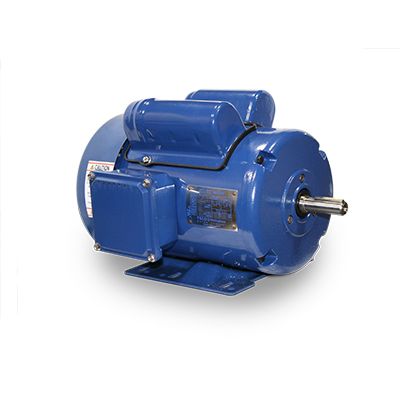

Teco - Model TEFC -HVAC Single Phase Motor

FromTECO-Westinghouse

SHARE

Single Phase, 60 Hz; 1.15 Service Factor for 115V & 230V or 1.0 Service Factor for 208V.

Most popular related searches

HP: 1/4 - 10 HP
Speed: 3600, 1800 RPM
Voltage: 115/208/230V (Tri-Voltage)
Frequency: 60 Hz

Capacitor Start, Capacitor Run
Class F Insulation
Automatic Reset Overload
Class B Temperature Rise
Designed for 40°C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
Rolled Steel Frame
Cast Aluminum Terminal Box
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
Paint Color: Blue - Munsell 5 PB 3/8
Double Shielded Bearings Pre-Packed with Lithium Base Grease
No Terminals; Lead End Peel-Off Insulation
Grounding Terminal Inside Main Box
Stainless Steel Nameplate
Motors are UL Recognized for United States and Canada
