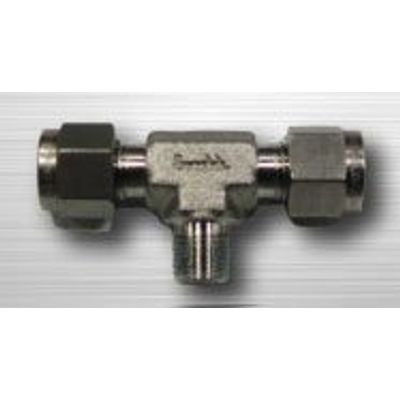

Jacobs Motiv-Air-Torr - Model ASP-520-S-4M2 -Tee Type Mini-Eductor (Venturi Eductor)
The Motiv-Air-Torr® is a tee-type mini-eductor (Venturi eductor) that provides a compact, highly efficient solution to remote sampling of gases or liquids. Our Venturi eductor has no moving parts, so it is maintenance free and optimized for minimal gas usage. Uses of this miniature industrial aspirator, also know as a Venturi vacuum pump or eductor, include gas or liquid aspiration, fine solids dispersion, dilution, evacuation, and many other applications.
316 Stainless steel with 1/4" branch tree with 1/8" MNPT thread
- Simple design
- No moving parts
- Easy to install
- Very low to no maintenance
- Can overcome back pressure
- Inexpensive replacement for pump
- Intrinsically safe
- Very low capital cost and cost-of-ownership
- Draws samples through analytical instrument
- Powered by pressurized gas or liquid
- Vaccum generator
- Installs on single point samples or multi-point manifolds
- Recovers analyzed samples while using the fast loop to power the aspirator
Our gas and air aspirators are used all over the world in gas & oil, petrochemical, pulp & paper, food and power industries for monitoring, analysis and environmental applications. Some of the uses for this aspirator are listed below:
- Educts remote samples of toxic, flammable or corrosive atmospheres for analysis
- Monitor for oxygen depletion
- Sample low or slightly negative pressure process lines or stack samples
- For venting, mixing of gases, monitoring stacks, emissions, flues, pollution control, instrumentation, and medical applications
- Can use process fluid as motive force and return the sample to the process
- Minimize process fluid entering an analyzer shed for safety
