TEI Controls - Model 0009 -Radio Telemetry System
The TEI Controls Radio Telemetry System - model 0009 is designed to be a simple, economical solution to remote telemetry problems. The model 0009 can send up to five control signals (contact closures) from a slave unit to a master unit.
Plug and play out of the box, no configuration or programming necessary!
- 5 Digital data bits input at Slave unit
- 5 Digital data bits output at Master unit
- Communications failure alarm output at Master unit
- Up to 14-mile "line-of-site" range**
- No radio license required
- 900 MHz band
- Nema 4X water tight fiberglass enclosure

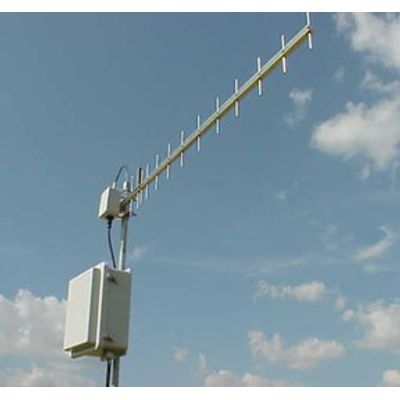

- 2-Antennas, 2-radios, cables, and lightning protection are included
- Isolation relays used on inputs and outputs to protect against voltage surges
- 18 Month Warranty
** Maximum line-of-sight range determined by antenna height and terrain. Must be true line-of-site: no buildings, trees, power lines, or hills.
The master and remote units are each housed in a 16"H × 14"W × 7"D Nema 4X fiberglass enclosure with stainless steel hardware. All output contacts are rated 2 amps @ 120 volts.
Custom Configurations and Options:
TEI Controls radio telemetry systems can be produced in various configurations to serve customer-specified needs. Some available options are:
- 2-Way telemetry
- Contact closure transmission from Master to Slave unit
- Programmed logic functions
- Instrumentation signal transmission/processing
- Multiple remote sites
- Range extension by signal relay
