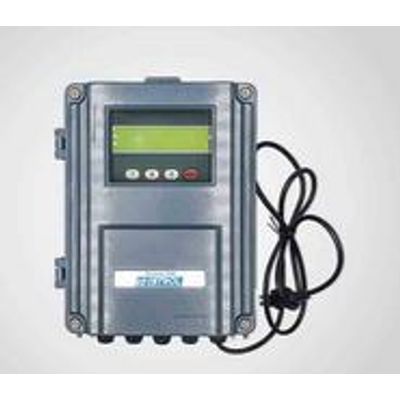

Tek-Trol - Model TEK-CLAMP 1200A Series -Ultrasonic Clamp On Flow Meter
Tek-Clamp 1200A Ultrasonic Clamp On Flow Meter is designed to measure the fluid velocity of liquid in a full or closed pipe. It is a measurement system which is both easy to install and use. The Tek-Clamp 1200A operates according to the difference in the Transit Time of Flight measured and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next. Flow in the same direction takes less time to travel to the second transducer than flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. The Tek-Clamp 1200A can be used for metallic, plastic, and rubber tubes.
Main Unit
- Accuracy ±1% of Reading
- Velocity ±0.03 to ±100 ft/s (±0.01 to ±30m/s)
- Repeatability 0.2%
- Measurement Period 0.5 Seconds
- Measurement Principle Transit-time measurement principle
- Display LCD with backlight. 2 x 20 letters
- Output 100F1 Modbus RS485, 4-20 mA, Pulse
- 100M Modbus RS485, 4-20 mA, Pulse
- 100EXP Modbus RS485, 4-20 mA, Pulse
- 100H None
- Input Two three wire system PT100 platinum resistor input loop. For BTV process monitoring
- Other Functions Automatically stores the memory of the positive, negative, net totalizer flow rate and heat quantity of the last 512 days, 128 months, 10 years
- Power 100F1 85 to 264VAC or 8 to 36VDC
- 100M 8 to 36VDC
- 100EXP 8 to 36VDC
- 100H Rechargeable nickel metal hydride battery
- Power Consumption Less than 1.5W
- Environment Temperature -22 °F to 176 °F (-30 °C to 80 °C)
- Environment Humidity 85% RH
- Protection Class IP65 (Tek-Clamp 1200A-100F1)
- IP65; Class I Div II (Tek-Clamp 1200A-100EXP)
- IP57 (Tek-Clamp 1200A-100M and 1200A-100H)
Transducers
- Clamp-On S2-type: for pipe size ½” to 4”
- M2-type: for pipe size 2” to 28”
- HS-type: for pipe size ½” to 4”
- HM-type: for pipe size 2” to 28”
- 1200A-L2: 12” to 200”
- 1200A-IM: 3” to 7”
- 1200A-IL: 3” to 12”
- Protection Class IP68, can work in water with depths less than 10’ (3m)
Liquids
- Types Virtually all commonly used clean liquids. Liquids with small quantity of
- tiny particles may also be applicable. Particle size should be less than 75um,
- particle concentration less than 20,000ppm. Liquids should contain no or
- very minor air bubbles
- Process Temperature -40 °F to 320 °F (-40 °C to 160 °C)
Pipe
- Pipe Material All metals, most plastics, fiberglass, etc.
- Pipe Size ½” to 28” (15mm to 700mm)
- Pipe Straight Run More than 10D for upstream, more than 5D for downstream, , where D is pipe diameter.
