MOBILE

Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps.
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRPO, RSRQ, Bytes sent/received
Bridge Direct connection (bridge) between mobile ISP and device on LAN
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services

WIRELESS

Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
WiFi security WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users Up to 100 simultaneous connections
Hotspot Captive portal (Hotspot), internal/external Radius server , built in customizable landing page

ETHERNET

WAN 1 x WAN (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT
VoIP passthrough support H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP alocation
QoS Traffic priority quening by source/destination, service, protocol or port, traffic priority quening by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup
Load balancing Balance your internet traffic over multiple WAN connections
NetSnapper (optional) Mobile connection management, data compression VPN client (not available in standard FW)
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Atack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
WiFi security WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously

MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from sever, automatic notification.
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without loosing current configuration

FIRMWARE CUSTOMIZATION

POWER

Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31VDC 10us max.
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption < 2W idle, < 7W Max.
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100 Mbps
Status LEDs 1 x bi-color connection status LED, 5x connection strength LEDs, 4x LAN status LEDs, 1x Power LED
SIM 2 x SIM slots (Mini SIM – 2FF, 2st form factor), 1.8V/3V
Power 4 pin industrial DC power socket
Anntenas 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
Reset Reset/restore to default button

PHYSICAL SPECIFICATION

OPERATING ENVIRONMENT

REGULATORY & TYPE APPROVALS

ENVIRONMENTAL TESTING

Anti-shock/Drop/Vibration IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, EN 60950-1:2006 + A1:2010 + A2:2013 + A11:2009 +A12:2011, DNVGL-CG-0339:2016, Class A - Section 3, Article 6; EN 60068-2-6:2008
Impact strength IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, EN 60950-1:2006 + A1:2010 + A2:2013 + A11:2009 +A12:2011

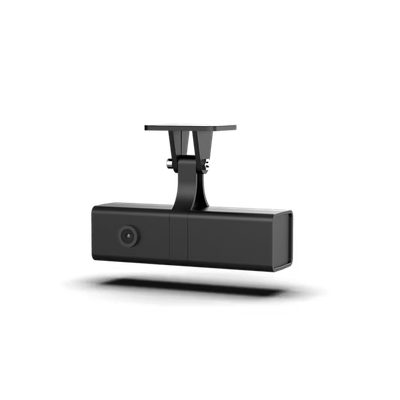

JSC Teltonika - Teltonika Dashcam
