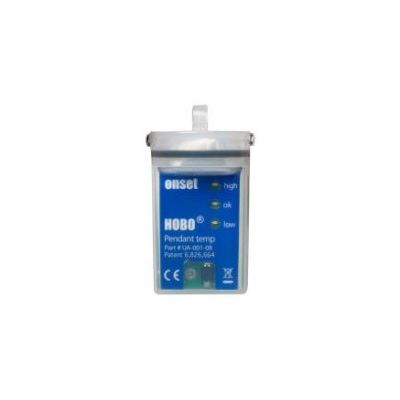

HOBO Pendant - Model UA-001-08 K -Temperature/Alarm Data Logger
This value-priced data logger is both miniature and waterproof, making it a sensible monitoring solution for specific temperature monitoring applications. The HOBO Pendant® Temperature/Alarm Data Logger has one channel and is recommended for short-term shipping or long-term monitoring. This data logger features a visible LED light indicator, which warns users when preset parameters have been exceeded. This model stores 6.5K of 10-bit temperature readings. Use a solar radiation shield for accurate temperature measurement in sunlight applications. See RS1 Solar Radiation Shield (assembly required) and M-RSA (pre-assembled) Solar Radiation Shield.
Features:
- Low-cost temperature with alarm indication or light intensity
- Waterproof housing for wet or underwater use
- Data readout in less than 30 seconds via fast Optic USB interface
Environment:
The UA-001-08 Data Logger is for use inIndoor , Outdoor and Underwater environments
Measurements:
The UA-001-08 Data Logger supports the following measurements: Temperature, Water Temp
- Measurement range: -20° to 70°C (-4° to 158°F)
- Alarms: High and low alarms can be configured for total amount of contiguous or non-contiguous time outside of user-defined limits between -20° and 70°C (-4° to 158°F)
- Accuracy: ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F)
- Resolution: Temperature: 0.14°C at 25°C (0.25°F at 77°F)
- Drift: Less than 0.1°C/year (0.2°F/year)
- Response time:
- Airflow of 2 m/s (4.4 mph): 10 minutes, typical to 90%
- Water: 5 minutes, typical to 90%
- Time accuracy: ± 1 minute per month at 25°C (77°F)
- Operating range:
- In water/ice: -20° to 50°C (-4° to 122°F)
- In air: -20° to 70°C (-4° to 158°F)
- Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F)
- NIST traceable certification: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)
- Battery life: 1 year typical use
- Memory:
- UA-001-08: 8K bytes (approximately 6.5K sample and event readings)
- UA-001-64: 64K bytes (approximately 52K sample and event readings)
- Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
- Weight: 18 g (0.6 oz)
- Dimensions: 5.8 x 3.3 x 2.3 (centimeters) and 2.3 x 1.3 x 0.9 (inches)
- The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
