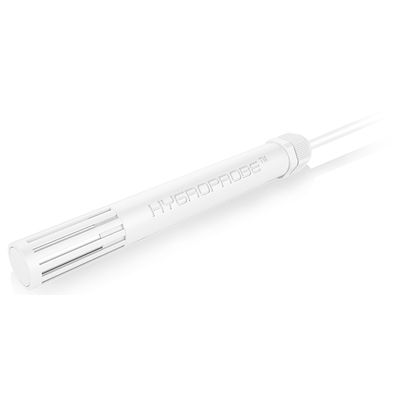

ZOGLAB - Model DSP1800 -Temperature and Humidity Probe
High accuracy with measuring range customized. Optional analog signal and digital signal. Single-point and multi-point calibration. Compatible with Rotronic and Vaisala`s probe command. Optional interface M12, RJ45 and 8 wire. Toxicity and halogen free material, complying with GXP.
Most popular related searches
temperature and humidity probe
environmental instrument
flame retardant
humidity probe
NTC sensor
humidity generator
humidity temperature probe
temperature probe
humidity sensor
Measuring Data
- T Measuring Range: -30?~70?, -40?~60?(-40?~85? customized)
- T Accuracy: ±0.1?(23?±2?), ±0.2?(FS)
- T Resolution: 0.01?/0.02?
- RH Measuring Range: 0%~100%RH
- RH Accuracy: ±2.5%RH(10%~85%RH) / other range ±5%RH(23?±2?)
- RH Resolution: 0.01%RH
General
- Power Supply: 5V~28V DC (0~5V 8V DC~28V DC 0~10V 14V DC~28V DC)
- Output Type: Analog signal:Voltage 0~1V / 0~2.5V / 0~5V / 0~10V, Digital signal:RS485
- Interface: M12?RJ45?4 Wires
- Storage Temperature: -50?~90?
- ESP Protection: ±25KV
- IP Class: IP64
Sensing Probe
- T Sensor model: NTC / PT100
- H Sensor model: Humidity capacitance
General Feature
- Housing: ABS+PC,flame-retardant,toxicity and halogen free
- Dimensions: Φ18.6 x 140mm
- Wire: 2m / 3m / 5m (customized)
- Weight: 26g
