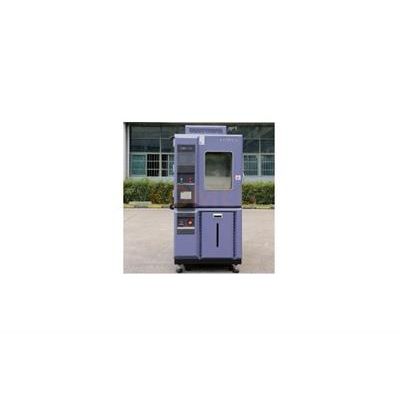

KOMEG - Model KMH-S Series -Temperature and Humidity Test Chamber
Ambient Temp.: 5ºC ~+35ºC. Standard accessories: Sight window*1, cable port(port 50mm)*1, shelves*2, chamber lamp*1, power cable *2m. Safety device (standard): No fuse breaker, over pressure over heat and over current protection for compressor. Over temp. protect, over load protect of blower, dry heat protection. Control System: Balanced Temperature & Humidity Control System. Refrigeration system: Air Cooled (Water Cooled Type is option). Hermetic compressor, Cascsde Refrigeration. CFC-Free refrigerant(HFC-507/HFC-23).
Most popular related searches
test chamber
temperature humidity chamber
humidity chamber
rigid polyurethane foam
environmental test chamber
stainless steel plate magnet
humidity test chamber
humidity control
heat protection
cooling water
- Controller: Panel:7-inch LCD Touch panel, Chinese or English display selectable
- Operation model :Program or fix point running
- Memory capacity :120programs,1200steps,
- All repeat 999 cycles, part repeat 99 cycles
- Interior material: Stainless Steel Plate ( SUS 304 )
- Exterior material: Baked Painting Steel Or Stainless steel(SUS304)
- Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
- System: Balanced & Humidity Control System
- Wiring method: AC 380±10 % 50Hz ,3 phase 4 wires +Ground Wires
Note:
- We reserve the right to change specifications without prior notice
- Customized sizes and configurations available
- Environmental Temperature and Humidity Chamber

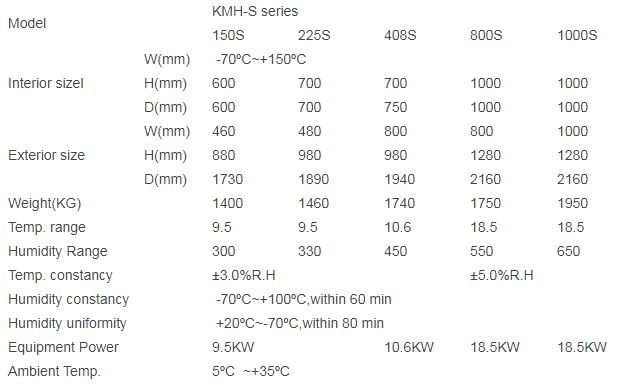

- Secifications ( at +20°C room temp. Or+25°C water temp with empty load)
