LoRa - Model AHT-5 -Temperature and Humidity Transmitter

SHARE

Adopting advanced CMOSens sensing technology, the Temperature and Humidity Transmitter is designed as the reliable sensor node of temperature and humidity measurement and usually used with the Aecl AUS-40X gateway to build up the private LoRa network.

Most popular related searches
temperature and humidity sensor
humidity transmitter
humidity temperature transmitter
temperature transmitter
humidity sensor
temperature sensor
remote sensing
building management system
humidity measurement
HVAC system

It is equipped with both wired RS485 and wireless LoRa interface which could be changed by DIP switches, meanwhile, the configuration enables its high flexibility of installation. Particularly, the programmable Modbus RTU protocol makes the AHT-503 transmitter ideal for process integration. The LoRa frequency of the AHT-503 temperature and RH transmitter will follow the Aecl master gateway and will be adjustable under range 862 ~ 932 MHz. Moreover, bright LCD display is optional and 4 types of enclosure are available, include wall mount type, duct mount type, outside Air type and separate type with remote sensing probe. The private LoRa sensor is widely used in the smart agriculture, smart building and smart home by system integrators who plan to implement the wireless network. The LoRa temperature and humidity transmitter have also been calibrated to exhibit excellent temperature and humidity stability.

LoRa temperature and RH transmitter, LoRa humidity and temperature sensor node, LoRa temperature and humidity sensor.

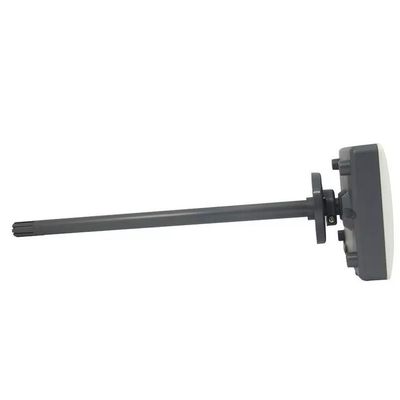

AHT-5 Duct mount humidity and temperature sensor specially designed for HVAC system The enclosure of the AHT-5 Series duct mount humidity and temperature sensor is rated IP65 and provides an encapsulated protection of sensing elements inside the sensing probe. Its outstanding protection against contamination and condensation and makes it suitable for air duct application in HVAC system and air-conditioning system.
AHT-5 Indoor temperature and humidity sensor perfect for BMS system
The compact size of the AHT-5 indoor temperature and humidity sensor simplifies the installation procedure and minimize the installation cost. Its minimalist and stylish design of the enclosure is perfect for the building management system in commercial or residential building.
AHT-5 Humidity and temperature sensor with remote sensing probe
The separate type temperature and humidity transmitter is equipped with one remote sensing probe which makes it suitable for the cold chain and storage application. Users could install the sensing probe inside the cold room and read the temperature and humidity data on the transmitter outside.
Outside air RH and temperature transmitter
The enclosure of outside air type temperature and humidity transmitter is rated IP65. Because of its excellent protection of the sensing electronics, the outside air temperature and RH transmitter is widely used in semi-outdoor environment such as rooftop or loggia.
Transmitter of duct mount, separate type and outside air temperature and RH transmitter
For the duct mount, separate type and outside air type temperature and humidity transmitter with analog output, users could direct adjust and calibrate the temperature and humidity value on the LCD display.
  • Measurement: Temperature/ Humidity
  • Measurement principle: CMOSens sensor technology
  • Measurement range:
  •   Temperature:0~100?/ 0~50?/ -50~+50?(Analog) ; -40?~100?(RS485)
  •   Humidity:0~100%RH
  • Output signal: switchable RS485/LoRa (The frequency can be configured accordingly from 862 to 932Hz)
  • Protocol: Modbus RTU
  • Power supply: 12 ~ 36V DC; AC 24V (50/60Hz)
  • Optional bright LCD display
  • Maintenance-free for normal indoor applications
  • CE certification

  • Commercial building / office
  • Residential building
  • Cold room
  • Hotel
  • Train station
  • Shopping Mall
  • Warehouse
  • Museum
  • Factory
  • Green House
  • Mushroom Farm
  • Data Center
  • Indoor places where would be required to monitor Temperature and Humidity
