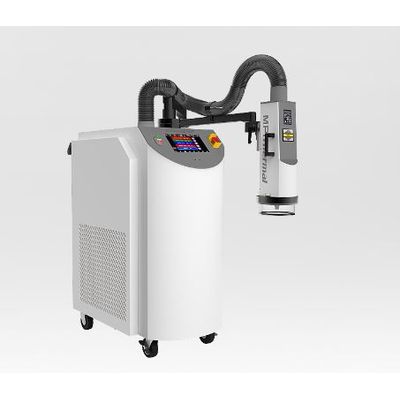

MPI ThermalAir - Model TA-5000A -Temperature Conditioning System
Instead of taking your parts that need temperature conditioning to an large oven or large environmental test chamber, our thermal test system allows you to perform your temperature profiling right where you need it - at your test bench, on your production floor or in your test laboratory. The ThermalAir TA-5000A is a compact, portable bench top environmental heating and cooling temperature forcing air stream system.
ThermalAir Temperature Cycling Test Systems
The ThermalAir TA-5000 series of products have a wide range of temperature test capabilities. Benchtop-40°C to +80°C applications to temperature cycling-100°C to+300°C environmental stress test. The TA-5000 series are used for temperature testing in engineering product development test labs and production test floors for semiconductor IC devices and all kinds of electronic - non-electronic components and other parts and assemblies.
Two Color Touch Screen Displays
The ThermalAir TA-5000A has a front panel display and a thermal head display. The thermal head color touch screen gives the user the ability to set temperature parameters and monitor all system operations at the test site location.
- Ultra Cold Temperatures maintained at 50&60Hz
- Dual Touch Screens Front Panel & Thermal Head
- Plug-in anywhere from 200-250VAC, 10
- ECO Smart DC system for up to 50% energy saving
- No voltage configuration to use at different locations
- Versatile Boom & Stand - Extended reach standard
- SSD for thermal file management and data logging
- Control Heated dry air purge for frost free operation
- One touch Temp Cycle, Ramp, Soak and Dwell
- Ultra low audible noise for quiet engineering lab use
- Failure Analysis Testing
- High Temperature Testing
- Low Temperature Testing
- Product Engineering
- Back-End Test
- Incoming inspection
- IC Handler Verification
- Functional Test
- Cooling the IC while Stress Full Cycle
- Environmental Stress Screening
