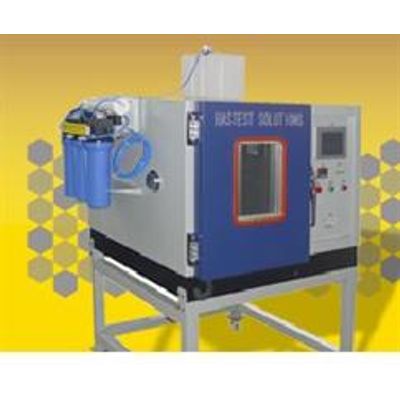

Hastest - Model HPCH-80NTSA -Temperature & Humidity Chamber
Hastest Solutions is excited to introduce a line of table top Temperature-Humidity chambers with a wide variety of sizes as well as temperatures and humidity ranges. All Hastest Solutions Chambers are equipped with a very powerful programmable controller that includes a LCD display and PID controls.
Chambers are designed with "Go Green" features using an energy efficient method of heating and cooling.
These chambers are offered in several standard sizes with popular temperature and humidity ranges with fast delivery times.
Most of the standard replacement parts are stocked in the Silicon Valley location offering quick turn around times.
Contact the local office to inquire about availability of Demo Models for short term lease and or purchase.
Hastest Solutions also offers chambers made to customer`s unique specifications and requirements.
- Stainless Steel Plate (SUS#304, Mist) Interior
- Steel Plate [Baked Panel] Exterior
- High Density Polyurethane Froth Insulation
- Unique, Uniform Airflow System
- SUS #304 Stainless Steel, PT 100 Ω, Temp-Hum Sensors (2)
- Fin Heat Disperse-Stainless Steel Heater
- PID controlled-Stainless Steel Humidifier
- Hermetic Compressors
- Dupont Type [No Fluorine] Refrigerant
- Air Cooled Type Condenser
- Multi-segment, Automatic Adjustment Evaporator
- High efficiency Temperite Type Oil Separator
- TEMI-300 Programmable LCD Controller
- RS-485 Communication Port/Connector
- Vane Type Sirocco, L134, Fan
- Single Door
- Observation Window; Anti-condensation & Frost Free
- Cable Port with Plugs
- Water Tank
- Adjustable Shelves, Stainless Steel, Qty (2)
- Anti-explosive Interior Lamps [Lighted Push Button Switch]
- Redundant Safety Features
- Fire Protection
- Fast Recovery Fuses
- Compressor Overload
- High Pressure Protect
- Phase Reversal Protect
- Circuit Breaker System
- Lack Of Water Detector
- Humidifier Thermal Overshoot Protector
- Alarms
- Interior Dimensions 400W x 500H x 400D mm
- [Many Other Sizes Available]
- Exterior Dimensions 600W x 950H x 1290D mm
- Volume 80 Liters
- Temperature Range -40°C to +140°C
- Temperature Constancy ±0.5°C
- Temperature Uniformity ±2.0°C
- Humidity Range 30 to 95% RH
- Humidity Constancy ±2.0% RH
- Humidity Uniformity ±3.0% RH
- Heating Rate +20°C to +140°C Approx. 40 mins.
- Cooling Rate +20°C to -40°C Approx. 70 mins.
- AC Power Sources 220VAC/60Hz/Single-Phase, 15Amps
- [Other Options Available]
- Weight 160 kg [Approx.]
