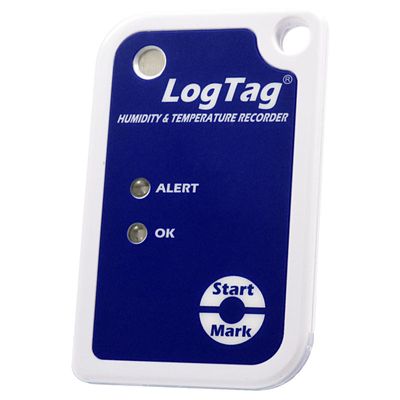

LogTag - Model LTHAXO8 -Temperature & Humidity Data Logger

Measures and stores up to 8000 sets of high resolution humidity and temperature readings

Most popular related searches

Alert indicator – indicates if readings are outside of preset limits
OK indicator indicates if still recording and if readings within configured limits
Inspection mark in log by push button
Push Button Logging start with optional delayed start or specific Time & Date start
Rapid Download! Takes only seconds to download recordings
Fine resolution of measurement – 0.1%RH & 0.1°C/°F
‘Pre-Start’ logging – Logtag can be configured to record even if it has not been started.
High performance at low cost
Credit card sized case – thin enough to be easily mailed “letter rate”.
Real time clock records time & temperature simultaneously
Easy to use LogTag Analyzer software that runs on any PC configures LogTag for recording then downloads resulting data for analysis. Data can also be exported to fomats compatible with other applications such as MS Excel
Re-calibration to achieve higher accuracy possible
Replaceable sensor air filter
NIST Traceable Certificate, not included, but available

Humdity Measurement Range: 0 ~ 100%RH but with limitations as detailed in Humidity Measurement Operating and Storage conditions below
Temperature Measurement Range: -40 ~ +85°C (-40 ~ +185°F)
Resolution: 0.1%RH & 0.1°C/°F
Capacity: 8000 pairs of humidity & temperature readings (32Kbytes memory)
Sampling frequency: adjustable, 30 sec to several hours
Logging start options: Push button start or specific date & time.
Recording indication: Flashing ‘OK’ indicator flashing ‘Alert’ indicator.
Download Time: Typically with full memory (8000 pairs of readings) in less than 10 seconds depending on computer or readout device used.
Environmental: IP61 (when hung or mounted vertically)
Power source: 3V Lithium battery
Battery life: 2 ~ 3 years of normal use (based on 15 minute logging, download data monthly)
Size: 86mm(H) x 54.5mm(W) x 8.6mm(T)
Weight: 35g
Case Material: Polycarbonate
