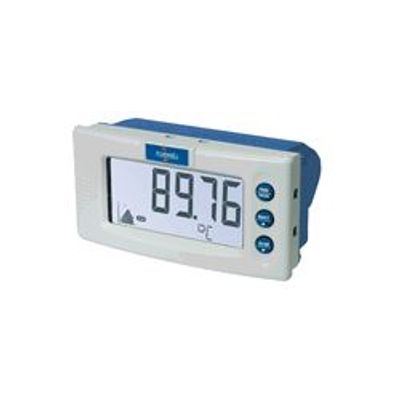

Fluidwell - Model D040 -Temperature Indicator with Very Large Digits

SHARE

The D040 is a straight forward, panel mount temperature indicator. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user friendly solution! The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive dip-switches or trimmers.

Most popular related searches
temperature indicator
temperature monitoring
water jetting
waterproofing
  • Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
  • Programming can be done by your own crew with the exact same, plain and sensible menu-driven structure like the F-Series, saving cost and irritation. Know one, know them all!
  • Displays actual temperature and measuring unit.
  • Very large 26mm (1") digits.
  • Piegraph indication: ten segments.
  • Number of digits for temperature: 5½.
  • Selectable on-screen engineering units: °C - °F - K.
  • Auto backup of all settings.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
  • LED backlight option.
  • Aluminum DIN front panel of 144 x 72mm (5.67" x 2.83") according DIN 43700 / IEC 61554.
  • Various accessories are available for this product.
  • The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
  • The D040 fits in applications where a basic temperature measurement display is required without temperature monitoring. Alternative models: D043 or the F-Series temperature indicators.

Power Supply

  • Basic: 8 - 30V DC (no real sensor supply).
  • Long life Lithium battery.
  • 4 – 20mAinput Loop-powered.
  • 24V AC/DC + sensor supply.
  • 115 – 230V AC + sensor supply.

Sensor Supply

  • 8.2, 12 & 24V DC.

Temperature Inputs

  • (0)4 – 20mA.
  • 0 – 10V DC.

Alarm Outputs

  • None.

Analog Outputs

  • None.
