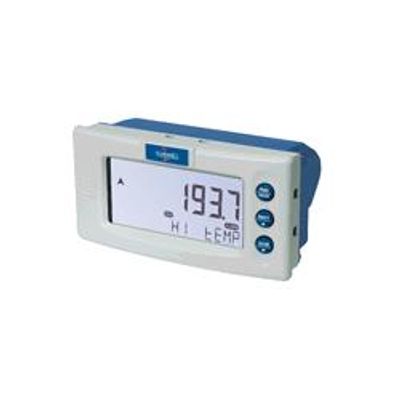

Fluidwell - Model D043 -Temperature Monitor with One High / Low Alarm Output

SHARE

The D043 is a versatile, panel mount temperature indicator with continuous temperature monitoring feature. It offers the facility to set one low temperature and one high temperature alarm value. If desired, an ignore function can be set up to allow for an incorrect temperature for a certain period of time.

Most popular related searches
temperature monitoring
temperature indicator
water jetting
waterproofing
  • Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
  • Programming can be done by your own crew with the exact same, plain and sensible menu-driven structure like the F-Series, saving cost and irritation. Know one, know them all!
  • Displays actual temperature and alarm values.
  • Two alarm values can be entered: low and high temperature alarm.
  • Temperature: six large 17mm (0.67) digits.
  • Selectable on-screen engineering units: °C - °F - K.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
  • Red flashing LED backlight in case of a temperature alarm.
  • Aluminum DIN front panel of 144 x 72mm (5.67" x 2.83") according DIN 43700 / IEC 61554.
  • Various accessories are available for this product.
  • The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
  • The D043 fits in applications where continous temperature measurement and monitoring is important.
    Alternative basic model: D040 or the F-Series temperature indicators.

Power Supply

  • Basic: 8 - 30V DC (no real sensor supply).
  • Long life Lithium battery.
  • 4 – 20mAinput Loop-powered.
  • 24V AC/DC + sensor supply.
  • 115 – 230V AC + sensor supply.

Sensor Supply

  • 8.2, 12 & 24V DC.

Temperature Inputs

  • (0)4 – 20mA.
  • 0 – 10V DC.

Alarm Outputs

  • Function: Configurable alarm output for high, low or both combined temperature alarms.
  • Type: One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.

Analog Outputs

  • None.
