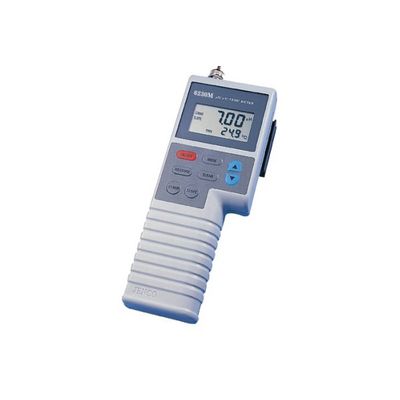

Jenco - Model 6230M -Temperature Portable Meter
Handheld pH/mV meter in a water resistant case with RS-232, BNC and 8-pin connectors. pH/mV/Temp. microprocessor handheld meter in splash proof case with up to 3 points calibration, 40 memory storage, RS-232-C IBM compatible communication interface and BNC, pH/ORP connector with 8-pin DIN ATC connector. AC/DC power. CE Approved.
Most popular related searches
portable pH meter
pH electrode
pH meter
handheld pH meter
portable pH
temperature meter
temperature calibrator
- up to 3 points calibration
- 40 memory storage
- Power down memories
- Electrode offset recognition
- Electrode slope recognition
- Built in buffer temp. coefficients
- ATC
- RS-232c output
- CE approved
- Splash resistant/watertight case
- Battery/ac adaptor
- High 50/60hz noise rejection
- UL / CE approved ac line adaptor or 6 X AAA batterys
- Highly reliable mechanical touch keys with audio feedback

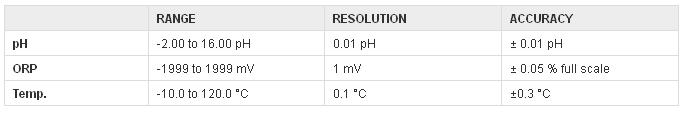

- H Range-2.00 to 16.00 pH
- pH Resolution0.01 pH
- pH Accuracy±0.01 pH
- ORP Range-1999 to 1999 mV
- ORP Resolution1 mV
- ORP Accuracy±0.05% F.S.
- Temperature Range-10.0 to 120.0 °C
- Temperature Resolution0.1 °C
- Temperature Accuracy±0.3 °C
- pH Buffer RecognitionSelectable (4.01,7, 10.01) or (4.00,6.86, 9.1)
- pH Calibration1point, 2 points or 3 points
- pH Temperature CompensationAuto/manual -10.0 to 120.0 °C
- pH Calibration Temperature Range0 to 60 °C
- pH Electrode Offset Recognition±90 mV at 7.00 or 6.86 pH
- pH Electrode Slope Recognition±30% at 4.00, 9.18 or 10.01 pH
- Input Impedance>1012 ohms
- ATC ProbeThermistor,10k ohm at 25 °C
- OutputRS-232C
- End Sensing & HoldYes
- Data Storage40 data points
- Power BackupMemeory backup
- Audio FeedbackAll touch keys
- Display pH/mV/Temperature12.5mm/7.5mm high LCD
- Ambient Temperature Range0 to 50.0 °C
- Relative HumidityUp to 95%
- Power Supply100 ~ 240 VAC adapter or AAA x 6 batteries
- Battery Life (Alkaline)Greater than 400 hours
- Dimensions83 x 241 x 71 mm
- Weight350 grams (including not batteries)
