MadgeTech - Model PR1000 -Temperature, Pressure and Transient Pressure Data Logger

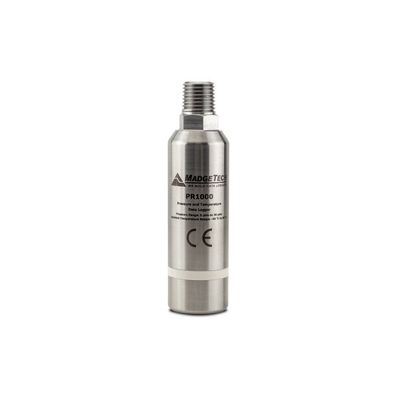

The PR1000 is a temperature, pressure and transient pressure data logger. This device is fully submersible and available in 10 models ranging from 30 to 5000 PSI. Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a ¼ inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C.
The PR1000 is a temperature, pressure and transient pressure data logger with an NPT fitting. Includes ISO17025 accredited calibration certificate.
Key Features:
- Compact
- Submersible
- ¼ Inch NPT Fitting
- Available in 10 Measurement Ranges
Availability: 5-7 Business Days
The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Note: The PR1000 replaces the PRTemp1000 and PRTRans1000.
General
- Memory: 1,396,736 readings
- Reading Rate: 1 reading every second up to 1 reading every 24 hours
- Transient = 128Hz
- Battery Life: 1 year
- In Transient Mode: 10 Days (at 128Hz)
- Material: 316 Stainless Steel/Radel
- Dimensions: 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.)
- Submersible: Yes
- Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
- Required Interface Package: IFC400 or IFC406
- Approvals: CE
Temperature
- Temperature Sensor: Internal semiconductor
- Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
- Temperature Resolution: 1.0 °C
- Temperature Calibrated Accuracy: ±2.0 °C
Pressure
- Pressure Range: 0 to 30, 100, 300, 500 PSIA/PSIG; 1000 and 5000 PSIA
- Pressure Resolution:
- Range: Resolution
- 0 to 30 PSIA/PSIG: 0.0005 PSI
- 100 PSIA/PSIG: 0.002 PSI
- 300 PSIA/PSIG: 0.005 PSI
- 500 PSIA/PSIG: 0.01 PSI
- 1000 PSIA: 0.02 PSI
- 5000 PSIA: 0.1 PSI
- Pressure Calibrated Accuracy:
- Range: Accuracy
- 0 to 30 PSIA/PSIG: ±0.6 PSI
- 100 PSIA/PSIG: ±2 PSI
- 300 PSIA/PSIG: ±6 PSI
- 500 PSIA/PSIG: ±10 PSI
- 1000 PSIA: ±20 PSI
- 5000 PSIA: ±100 PSI
