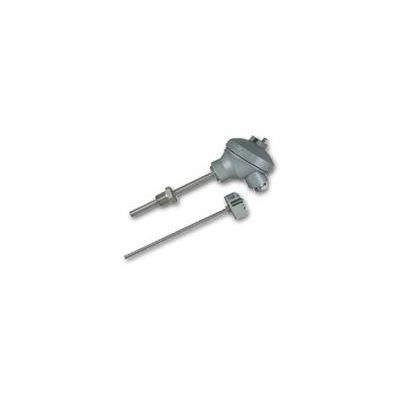

iCenta - Model IC-PPL8 -Temperature Sensor
The PPL8 temperature sensor incorporates a pocket as well as a spring loaded insert which allows it to be withdrawn extremely easily without breaking into the process line. iCenta can supply the sensor stem with any immersion length and process connection to meet exact requirements. A lagging extension can also be specified and with various options available for the terminal head, including IP68 stainless steel versions, we are sure to satisfy all of your requirements.
Features of the PPL8 Temperature Sensor include:
- Customer specific sensor
- Optional terminal housing type
- In-head temperature transmitter
- Probe length to to customer requirements
- Easy sensor withdrawal
The IC-PPL8 Temperature Sensor incorporates a pocket as well as a spring loaded insert which allows the sensor to be withdrawn extremely easily without breaking into the process line.
Specification Detail of the IC PPL8 Temperature sensor:
- Pipe Size : DN10
- Material Body : 316 stainless steel
- Sensor Type : RTD – PT100, PT500 or PT1000
- Probe diameter : 3mm up to 15mm
- Operating Temp Range : -50 to 250°C
- Output : 4 – 20mA
- Approvals : IP67
- Connection Type : RJT 1/2″ through to 4″
