Viltrus - Model TM-3 -Temperature Sensors

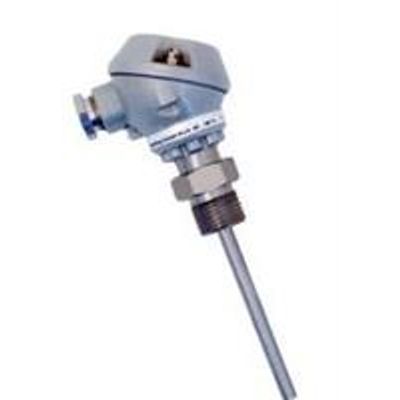

TM-3 RTD temperature sensor with an extra small / compact connection head is high quality, robust temperature sensor. The application areas are: air conditioning, refrigeration industry, construction of HVAC systems, laboratory technologies or farming and agriculture.
- Made from AISI304 (1.4301) or 316L (1.4404) stainless steel
- Connecting cable: PVC, Silicone, PTFE or GLASS fiber
- For temperatures from -50 to +400 °C
- Resistance thermometer class A or B, thermocouple 1 or 2 class
- 2-wire, 3-wire or 4-wire circuit
- Short response time
- Customer – specific thermowell lengths, diameter and process dimensions
Application possibilities
J head RTD or thermocouple temperature probes are the preferred choice for measuring temperature in liquids and gasses from -50 to +400°C.
- Water/Heat monitoring
- Industrial monitoring
- Agro monitoring
- Heat substation monitoring
- Commercial monitoring
Thermometers adjustment to client`s needs
If client needs custom made application or special dimensions, our R&D department is ready to help. We can adjust our temperature sensors or whole measurement system, include special temperature sensors, protocols or interfaces to meet client application`s needs. Also we are ready to adjust our solution for existing system with various sensors. If you are not sure if our device can satisfy your needs, feel free to contact us anytime.
TM-3 application for industry and agriculture use is shown below.
- SensorRTD (resistance) or thermocouple
- ClassA or B (for RTD) and class 1 or 2 for thermocouple
- ThermowellAISI304 (1.4301) or 316L (1.4404) stainless steel
- Inside materialPVC, silicone, PTFE or GLASS fiber metal braiding
- Circuit2-wire, 3-wire or 4-wire circuit
- Dimensions100 … 3000 mm
- Weight250 g
- Protection typeIP65
- Measurement range-50 to +400°C
- Operating temperature-30 to +85°C
- Warranty period2 years
