Eltek GenII - Model CS -Temperature Sensors for Ambient Temperatures
Thermistors are ideal for ambient temperatures as they combine fast response time and accuracy. Range extremes are -50°C to + 150°C. Long cable lengths can be used. Type U: 2000 ohms at 25°C (accuracy +/-0.1°C over the range 0 to 70°C).
PRTs (Platinum resistance)
Accurate at High Temperatures
PRTs are best suited for measuring temperatures down to -100°C and up to +600°C with good long term stability and accuracy. Due to the small change in resistance of PRTs, cable resistance can affect the accuracy of the sensor. Three or preferably four wire cables should be used and long lengths should be avoided. Eltek products support only PT100 Platinum Resistance Sensors.

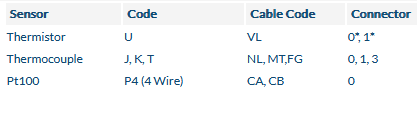

Probe Types
Items marked with a * are available on quick delivery.

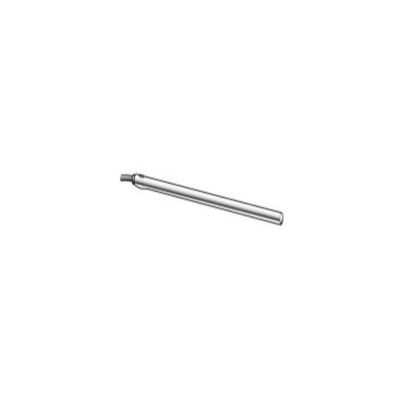

General Purpose
Robust, fast response, stainless steel, rounded end probes. Typical applications include air, vapours, liquids, powders, fridges, freezers, food...
