iTEMP - Model TMT71 -Temperature Transmitter
Transformation of sensor signals into stable and standardized output signals for all industries. Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.
-
Safe operation in hazardous areas thanks to international approvals
-
Reliable operation thanks to sensor and device monitoring
-
Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App, optional
-
User-friendly guided user interface concept also on-site via Bluetooth®
-

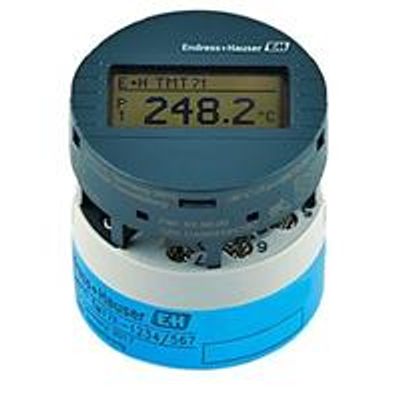

Available with plug-on display TID10
-
Diagnostics information according to NAMUR NE 107
-
Bluetooth®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
-
Improved process efficiency and increased plant uptime
-
Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω) and voltage transmitters (mV)
-
Installation in terminal head form B as per DIN EN 50446
-
Installation in cabinets with DIN rail housing
-
Optional installation in field housing for Ex d applications
-
Measuring principle
Head transmitter
-
Input
1 x RTD, TC, Ohm, mV
-
Output
1 x analog 4...20 mA
-
Auxiliary power supply
10…36 V DC
-
Communication
PCP (pc-programmable)
Bluetooth® technology -
Installation
Terminal head form B
Field housing -
Accuracy
(Pt100) <= 0,1K
-
Galvanic isolation
yes
-
Certification
ATEX II1G Ex ia IIC T6
ATEX II3G Ex ic IIC T6 Gc
ATEX II3D Ex tc IIIC Dc
ATEX II3G Ex nA IIC T6
ATEX II2G Ex ia IIC T6, II3D Ex ia IIIC Dc
ATEX II1G Ex ia IIC T6, II3D
ATEX II3G Ex nA IIC T6, II3D
ATEX II2G Ex db IIC T6 Gb, II2D Ex tb IIIC Db
CSA C/US IS, NI I / 1+2/A-D
CSA C/US XP, NI, DIP I, II, III/1+2/A-G
IECEx Ex d T6 Gb, Ex tb IIIC Db
ATEX IECEx II1G Ex ia IIC T6 Ga
ATEX IECEx II2D Ex tb IIIC Db
